Dayton

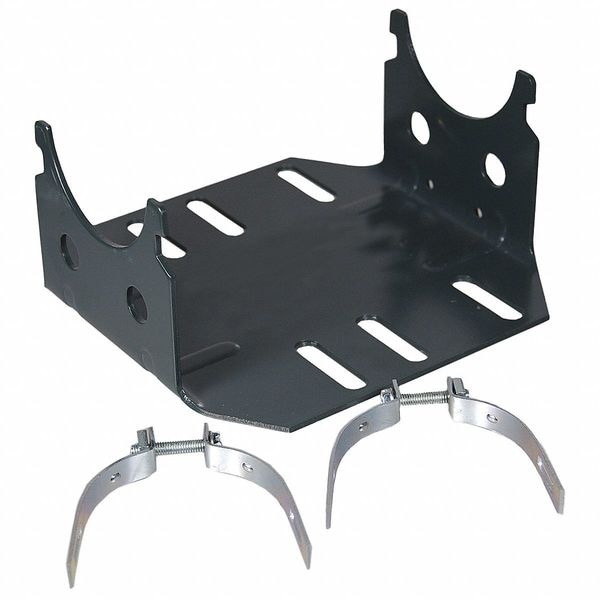

Mounting Base, NEMA Frame 42, 4-7/8 In.
Mfr # 22F196
Zoro # G4480655
$25.69
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- For NEMA Frame 42
- Length (In.) 5 in
- Width (In.) 6 in
- Height (In.) 3 3/8 in
- Mounting Holes O.C. W (In.) 4 1/4 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Dayton
- MFR # 22F196
- Zoro # G4480655
- UPC # 190735169148
- Country of Origin United States
- Category Motor Mounting Bases
Dimensions
Length (In.) | 5 in |
Width (In.) | 6 in |
Height (In.) | 3 3/8 in |
Bolt Size (In.) | 5/16 in |
Shaft Height (In.) | 3 1/2 in |
Ring Dia. (In.) | 2 1/2 in |
Motor Body Dia. (In.) | 5 in |
Mounting Bolt Hole Spacing Width | 4 1/4 in |
Motor Shaft Height (In.) | 3 1/2 in |
Overall Length | 5 in |
Overall Height | 3 3/8 in |
Compatible NEMA Frame Size | 42 |
Compatible Ring Diameter | 2 1/2 in |
Overall Width | 6 in |
Compatible Motor Diameter | 5 in |
Mounting Bolt Hole Spacing Length | 1 3/4 in, 2 3/4 in |
Description
Motor Mounting Base, Compatible Motor Diameter 5 in, Compatible Ring Diameter 2 1/2 in, Compatible NEMA Frame Size 42, Mounting Bolt Hole Spacing Length 1 3/4 in, 2 3/4 in, Mounting Bolt Hole Spacing Width 4 1/4 in, Ring-to-Ring Distance 4 7/8 in, Includes (2) Clamps, Gray Color, Overall Height 3 3/8 in, Overall Length 5 in, Overall Width 6 in
