Dayton

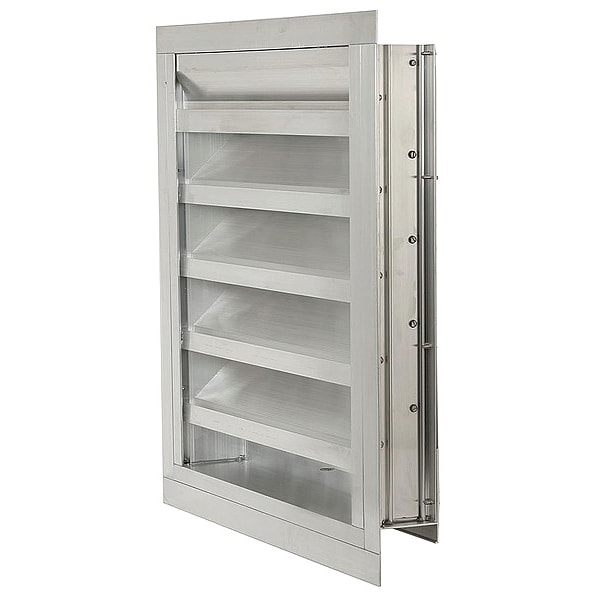

Intake Louver, Fixed, Drainable, 24H x 24W
Mfr # 20UA09
Zoro # G8485547
Free Shipping & Returns
$321.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Louver Type Stationary Blade
- Louver Free Area 1.88 sq ft
- For Use With Intake or Exhaust Applications
- Min. Wall Opening (In.) 24H x 24W
- Louver Max. Intake 1,809 cfm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Dayton
- MFR # 20UA09
- Zoro # G8485547
- UPC # 190735154397
- Country of Origin United States
- Category Intake Louvers
Dimensions
Intake Louver Inside Width | 21 in |
Intake Louver Outside Height | 26 1/2 in |
Outside Width (In.) | 26 1/2 in |
Flange Width (In.) | 1 1/2 in |
Inside Height (In.) | 18 in |
Rough Opening Width | 24 in |
Inside Width | 21 3/4 in |
Outside Height | 23 1/2 in |
Minimum Outside Width | 26 1/2 in |
Min. Wall Opening (H x W) | 24 in x 24 in |
Rough Opening Height | 24 in |
Inside Height | 18 in |
Maximum Outside Width | 26 1/2 in |
Flange Width | 1 1/2 in |
Outside Width | 23 1/2 in |
Frame Depth | 4 in |
Description
27 In.H 27 In.W Drnbl Extrd Alu Intake Louver, Louver Type Stationary Blade, Frame Type Flanged, Frame Depth 4 in, Mounting Style Surface Mount, Outside Height 23 1/2 in, Outside Width 23 1/2 in, Rough Opening Height 24 in, Rough Opening Width 24 in, Louver Maximum Intake 1,809 cfm, Maximum Exhaust 2,587 cfm, Maximum Outside Width 26 1/2 in, Minimum Outside Width 26 1/2 in, Flange Width 1 1/2 in, Free Area 1.8 sq ft, Beginning Point of Water Penetration 1,031 fpm, Maximum Air Velocity 3500 fpm
