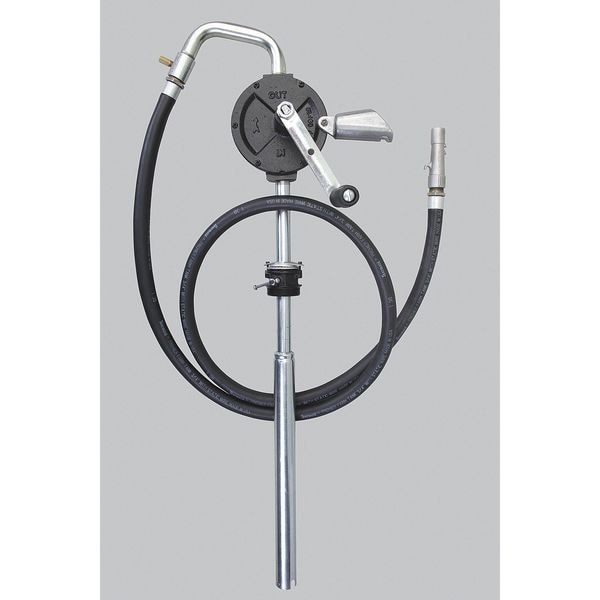

Hand Drum Pump, Cast Iron, 3/4In FNPT

Mfr # 4VCR4
Zoro # G1151595

$197.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Suction Tube Length 18-3/16 in to 34-1/2 in
Action Type Rotary
For Media Type General Purpose
For Container Size 55 gal
Max. Flow Rate 10 gal per 120 strokes

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 4VCR4
Zoro # G1151595
UPC #
190735335840
Country of Origin India
Category Hand Drum Pumps

Dimensions

Suction Tube Length	18-3/16 in to 34-1/2 in
For Container Size	55 gal
Height	9-1/2"
Discharge Tube Length	96"
Discharge Tube Outlet OD Size	1-1/8"
Outlet Size	3/4" FNPT
Inlet Size	3/4" FNPT
Adapter Dia.	2"
Discharge Tube Outlet ID Size	3/4"
Suction Tube Outlet O.D. Size	1"
Hose Length	96 in
Hose Inside Dia.	3/4 in
Bung Connection Dia.	2 in
Overall Length	10-7/8"

Details

Action Type	Rotary
For Media Type	General Purpose
Max. Flow Rate	10 gal per 120 strokes
Max. Viscosity	2,000 SUS
Wetted Materials	Cast Iron, Graphite, Paper, Polypropylene, Steel
Discharge Tube Outlet ID	3/4 in
Max. Fluid Temp.	250 Degrees F
Includes	3/4 in x 8 ft Anti-Static Rubber Hose, Baffle and Strainer, Nozzle, Nozzle Holder, Vacuum Breaker
Suction Tube OD	1 in
Metered	No
Discharge Tube Outlet OD	1 1/8 in
Includes Suction Tube	Yes
Adapter Material	Cast Iron
Max. Liquid Temp.	250 Degrees F
Ounces per Stroke	Up to 10 GPM
Features	1. Industry Standard for Rotary Pumps, These are By Far the Heaviest Duty, Ideal for Tough Outdoor Use in Extreme Weather Conditions, 2. Solid Cast Iron Construction, Fully CNC Machined to Close Tolerances, 3. Graphite Vanes are Self-Lubricating and Non-Wearing, 4. High Quality Graphite Seals Allows the Pump to be Used with a Wide Variety of Fluids, Including Diesel with up to 15% Ethanol Blend
Suction Tube Type	Telescopic
Agency Compliance	FM Approved
Adapter Type	2" Bung
For Use With	Diesel, Kerosene, Non Corrosive Media Solvent Kit is Available, Oil based Media
Self-Priming	Yes
Item	Hand Operated Drum Pump
GPM	10 @ 120 rpm
Discharge Tubing Material	Zinc Plated Steel, Neoprene Rubber Hose, Aluminum Nozzle
Max. Head	10 ft.
Max. Pressure	10 psi
Housing Material	Cast iron
Seal Material	Graphite
Application	Oil based Media, Diesel, Kerosene, Non Corrosive Media. Solvent Kit is Available
Includes Nozzle	Yes
Power Source	Hand Operated
Includes Bung Adapter	Yes
Type	Rotary Action, FM
Standards	FM Approved
Nozzle Operation	Manual
For Container Type	Drum
Hose Tube Material	Rubber
Hose Cover Material	Rubber
Housing Material - Pumps	Cast Iron
Includes Discharge Hose	Yes
Max. Head - Pumps	10 ft
Max. Head Pressure	10 psi
Adapter Connection Type	NPT

Description

Hand Operated Drum Pump, Self-Priming Yes, Metered No, Hose Length 96 in, Includes Discharge Hose Yes
