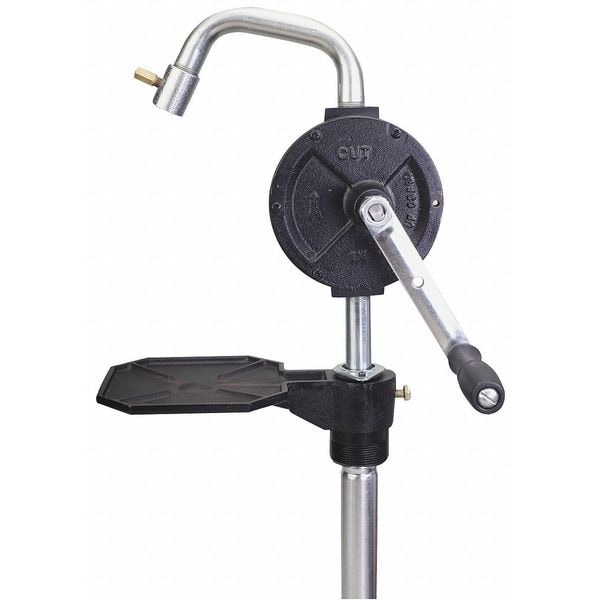

Hand Drum Pump, Cast Iron, 3/4 In FNPT

Mfr # 5UWH2
Zoro # G2342934

$239.68

24% off

$181.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Action Type Rotary
Suction Tube Length 24 in to 40 in
For Media Type General Purpose
For Container Size 55 gal
Max. Flow Rate 10 gal per 120 strokes

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 5UWH2
Zoro # G2342934
UPC #
190735352670
Country of Origin India
Category Hand Drum Pumps

Dimensions

Suction Tube Length	24 in to 40 in
For Container Size	55 gal
Adapter Dia.	2"
Discharge Tube Outlet OD Size	1-3/64"
Discharge Tube Outlet ID Size	7/8"
Inlet Size	3/4" FNPT
Manufacturers Warranty Length	1 yr.
Height	9-1/2"
Outlet Size	3/4" FNPT
Suction Tube Outlet O.D. Size	1"
Discharge Tube Length	7"
Bung Connection Dia.	2 in
Overall Length	10-7/8"
Spout Length	7 in

Details

Action Type	Rotary
For Media Type	General Purpose
Max. Flow Rate	10 gal per 120 strokes
Max. Viscosity	2,000 SUS
Wetted Materials	Cast Iron, Graphite, Paper, Polypropylene, Steel
Max. Fluid Temp.	250 Degrees F
Discharge Tube Outlet ID	7/8 in
Includes	Drip Pan
Suction Tube OD	1 in
Metered	No
Discharge Tube Outlet OD	1 in
Includes Suction Tube	Yes
Adapter Material	Cast Iron
GPM	10 @ 120 rpm
Self-Priming	Yes
Housing Material	Cast iron
For Use With	Diesel, Gasoline, Kerosene, Non Corrosive Media, Oil Based Media
Agency Compliance	FM Approved
Max. Head	10 ft.
Max. Liquid Temp.	250 Degrees F
Max. Pressure	10 psi
Suction Tube Type	Telescopic
Features	1. Hand Operated Rotary Barrel Pumps are Extrenely Rugged, Reliable, & Heavy Duty. Used for Convenient Transfer of Non-Corrosive Fluids, 2. Manufactured for Efficiently Handling a Wide Range of Fluids in Industrial, Automotive, & Aggricultural Applications, 3. 3 Vane Construction Facilitates Self-Priming & Allows for Rapid Transfer of Liquids at Steady Rate. Vanes are Manufactured from Graphite which are Tough, Low-Friction, with Better Wearing Qualities, 4. Pump Body has a Sturdy Cast Iron Construction & is CNC Machined to Close Tolerance for High Performance
Item	Hand Operated Drum Pump
Discharge Tubing Material	Steel
Adapter Type	2 In Bung Built Into Drip Pan
Ounces per Stroke	10 GPM @ 120 RPM
Seal Material	Graphite
Application	Oil Based Media, Diesel, Kerosene, Gasoline, Non Corrosive Media
For Container Type	Drum
Includes Discharge Hose	No
Includes Bung Adapter	Yes
Power Source	Hand Operated
Housing Material - Pumps	Cast Iron
Includes Spout	Yes
Max. Head - Pumps	10 ft
Standards	FM Approved
Type	Rotary Action, FM
Max. Head Pressure	10 psi
Includes Nozzle	No
Adapter Connection Type	NPT

Description

Hand Operated Drum Pump, Self-Priming Yes, Metered No, Includes Discharge Hose No
