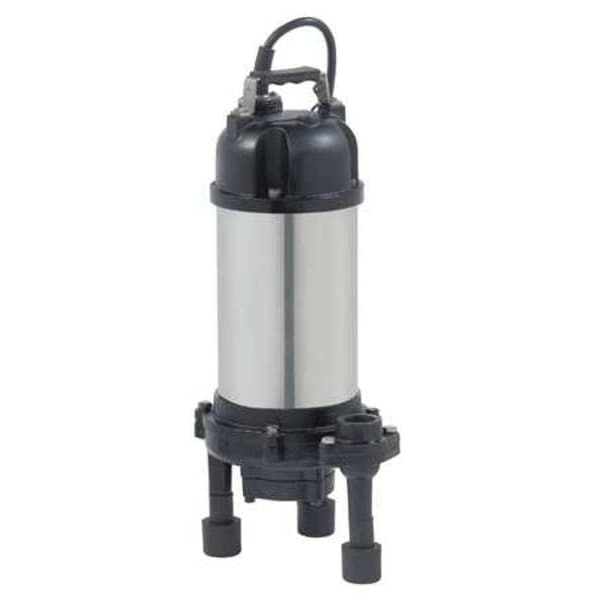

Grinder Pump, 2 HP, 230 Volts, 11 Amps, SS

Mfr # 11A345
Zoro # G4962815

$1,671.47

19% off

$1,337.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

HP 2 hp
Phase - Pumps 1
Switch Actuation No Switch Included
Body Material Stainless Steel
Base Material Cast Iron

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 11A345
Zoro # G4962815
UPC #
190735110300
Country of Origin Taiwan, Province of China
Category Grinder Pumps

Dimensions

Min. Sump Pit Dia.	24 in
Height	21-1/4"
Cord Length - Pumps	16 ft.
Length	21.3"
Cord Length	16 ft
Manufacturers Warranty Length	1 yr
Diameter	7.6"
Max. Dia. Solids	1/8"
Max. Diameter Solids	1/8 in
Overall Length	21 19/64 in
Body Dia.	7 19/32 in
Discharge Dia.	1 1/4 in
Overall Height	21 1/4 in

Details

HP	2 hp
Phase - Pumps	1
Switch Actuation	No Switch Included
Body Material	Stainless Steel
Base Material	Cast Iron
Flow Rate @ 10 Ft. of Head	42 gpm
Max. Head	98 ft
Impeller Material	Ductile Iron
Voltage	230
Hz	60
Shaft Seal	CRB/CMC/Si/Si
GPM of Water @ 60 Ft. of Head	25
Bearing Type	Upper and Lower Ball
Amps	11 A
Impeller Material - Pumps	Ductile Iron
Switch Type	Float
GPM of Water @ 30 Ft. of Head	38
GPM of Water @ 45 Ft. of Head	37
Handle	Yes
Shaft Seal Material - Pumps	Carbon, Ceramic, Silicon Carbide
GPM of Water @ 25 Ft. of Head	41
Voltage - Pumps	240VAC
GPM of Water @ 90 Ft. of Head	5
Motor Type	1-Phase
Phase	1
GPM of Water @ 50 Ft. of Head	33
GPM of Water @ 5 Ft. of Head	42
GPM of Water @ 10 Ft. of Head	42
Duty	Continous
Item	Grinder Pump
GPM of Water @ 20 Ft. of Head	40
Housing Material	Stainless steel
Agency Compliance	CSA C/US
GPM of Water @ 40 Ft. of Head	38
Pump Body Material	Stainless Steel
Max. Liquid Temp.	104 Degrees F
GPM of Water @ 55 Ft. of Head	30
Input Phase AC	1
GPM of Water @ 15 Ft. of Head	41
Includes	Chrome Steel Cutter, Cutter Ring
GPM of Water @ 35 Ft. of Head	40
Thermal Protection	Yes
Motor RPM	2900
Max. Head - Pumps	98 ft.
Discharge NPT	1-1/4" F
Pump HP	2
Item - Grinder Pumps	Grinder Pump
GPM of Water @ 70 Ft. of Head	16
Switch Type - Pumps	Float
GPM of Water @ 80 Ft. of Head	10
GPM of Water @ 200 Ft. of Head	9.2
Pump RPM	2900
Switch Electrical Connection	No Switch Included
Rated Voltage	240V AC
Flow Rate @ 20 Ft. of Head	40 gpm
Flow Rate @ 15 Ft. of Head	41 gpm
RPM	2,900 RPM
Flow Rate @ 40 Ft. of Head	38 gpm
Discharge	1 1/4 in FNPT
Discharge Standard	NPT
Discharge Gender	Female
Duty Cycle	Continuous
Flow Rate @ 60 Ft. of Head	25 gpm

Description

Grinder Pump, HP 2 hp, Rated Voltage 240V AC, Hz 60, Phase - Pumps 1, Amps 11 A, Motor Type 1-Phase, Body Material Stainless Steel, Impeller Material Ductile Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Silicon Carbide, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 42 gpm, Flow Rate @ 15 Ft. of Head 41 gpm, Flow Rate @ 20 Ft. of Head 40 gpm, Flow Rate @ 40 Ft. of Head 38 gpm, Flow Rate @ 60 Ft. of Head 25 gpm
