Shop All Split-Phase AC Motors
Dayton

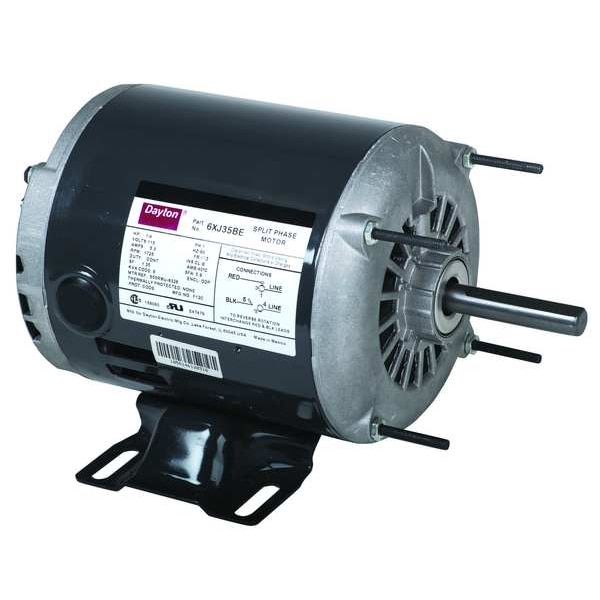

General Purpose Motor, Split-Phase, 1/4 HP
Mfr # 6XJ35
Zoro # G1186367
product price: $153.99
/ea
Free Shipping & Returns
$153.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Max. Ambient Temp. 104 Degrees F
- Nominal Efficiency 52 %
- Hz 60 Hz
- Voltage 115V AC
- Standards CSA (156060), UL (E47479)
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Dayton
- MFR # 6XJ35
- Zoro # G1186367
- UPC # 190735373514
- Country of Origin Mexico
- Category Split-Phase AC Motors
Dimensions
Shaft Length | 2 1/4 in |
Length Less Shaft | 7 1/2 in |
Shaft Dia. | 1/2 in |
Overall Length | 9 3/4 in |
Manufacturers Warranty Length | 1 yr |
Description
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.3 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
