Dayton

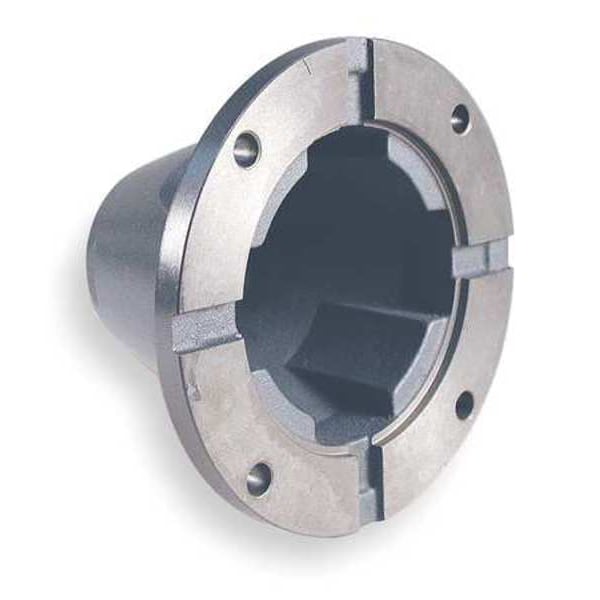

Flange Coupling Kit

product price: $239.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Worm Center Distance (In.) 2.06 in
  • Input Motor Frame Size 56C
  • Material Cast iron
  • Motor Coupling Bore (In.) 0.63 in
  • Reducer Coupling Keyway (In.) 0.19 x 0.09
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Input Motor Frame Size 56C
Overall Length Reducer & Flange (In.) 11.31 in
Bolt Circle Dia. Flange to Motor (In.) 5.88 in
Motor Coupling Keyway Depth 3/32 in
Reducer Coupling Keyway Width 3/16 in
Reducer Coupling Keyway Depth 3/32 in
Motor Coupling Bore Diameter 5/8 in
Motor Coupling Keyway Width 3/16 in
Reducer Coupling Bore Diameter 5/8 in

Details

Worm Center Distance (In.) 2.06 in
Material Cast iron
Motor Coupling Bore (In.) 0.63 in
Reducer Coupling Keyway (In.) 0.19 x 0.09
Reducer Coupling Bore (In.) 0.63 in
Includes Jaw Style Coupling, Mounting Hardware
Item Flange Coupling Kit
For Use With 56C NEMA Frame Motor, Dayton Indirect Drive Right Angle Speed Reducer, Worm Center Distance 2.06
Motor Coupling Keyway (In.) 0.19 x 0.09
For Worm Center Distance 2.06 in
Flex Coupling Material Cast Iron
Motor Frame Designation 56C

Description

Flange Coupling Kit, For Worm Center Distance 2.06 in, Motor Frame Designation 56C, Motor Coupling Bore Diameter 5/8 in, Motor Coupling Keyway Depth 3/32 in, Motor Coupling Keyway Width 3/16 in, Reducer Coupling Bore Diameter 5/8 in, Reducer Coupling Keyway Depth 3/32 in, Reducer Coupling Keyway Width 3/16 in, Flex Coupling Material Cast Iron, For Use With 56C NEMA Frame Motor, Dayton Indirect Drive Right Angle Speed Reducer, Worm Center Distance 2.06
