Dayton

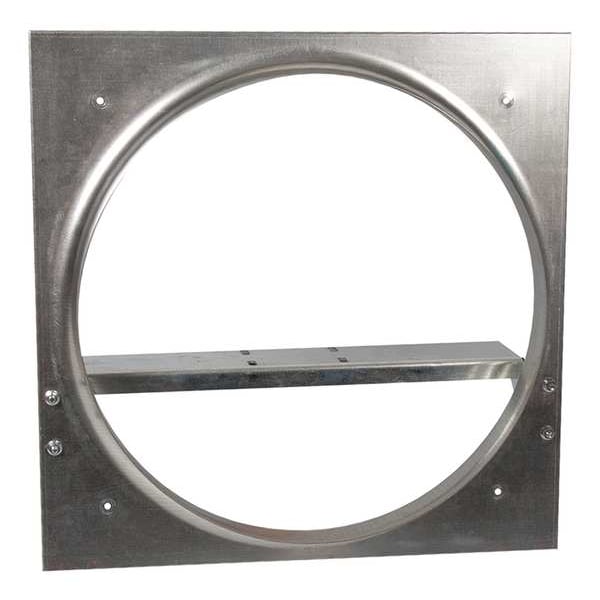

Exhaust Fan Venturi Frame, 20x20, Galv
Mfr # 10E034
Zoro # G4126857
product price: $184.99
/ea
Free Shipping & Returns
$184.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Venturi Depth 3 in
- Width 20 in
- Frame Material Steel
- Dimension A 20 in
- Dia. Opening Required 18 1/2 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Dayton
- MFR # 10E034
- Zoro # G4126857
- UPC # 190735109564
- Country of Origin Mexico
- Category Exhaust and Supply Fan Accessories
Dimensions
Venturi Depth | 3 in |
Width | 20 in |
Dimension A | 20 in |
Dia. Opening Required | 18 1/2 in |
For Blade Dia. | 16 in |
Dimension D | 7 in |
Height | 20 in |
Flange Width | 1 in |
Max. Depth | 8 1/2 in |
Dimension B | 4 in |
Dimension C | 16 1/2 in |
Overall Width | 20 in |
For Cut-Out Width | 18 1/2 in |
Overall Height | 20 in |
Recommended Wall Opening HxW | 18 1/2 in x 18 1/2 in |
For Blade Diameter | 16 in |
Overall Depth | 8 1/2 in |
Recommended Wall Opening HxW (Direct-to-Wall Installation) | 18 1/2 in x 18 1/2 in |
For Cut-Out Height | 18 1/2 in |
Overall HxWxD | 20 in x 20 in x 8 1/2 in |
Opening Diameter | 18 1/2 in |
Description
Exhaust Fan Venturi Frame, For Blade Diameter 16 in, Includes Mounting Bolts, Slotted Motor Base, Overall Depth 8 1/2 in, Overall Height 20 in, Overall Width 20 in, Venturi Depth 3 in, Flange Width 1 in, For Cut-Out Height 18 1/2 in, For Cut-Out Width 18 1/2 in, Frame Finish Galvanized, Material Steel, Opening Diameter 18 1/2 in
