Dayton

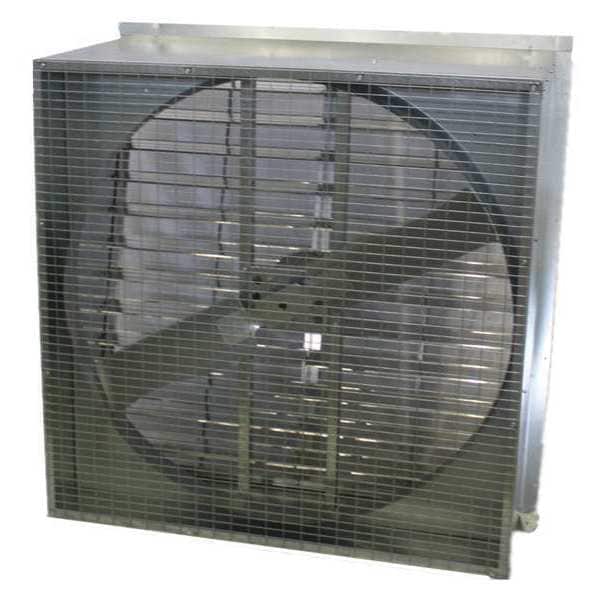

Exhaust Fan, Slantwall, 48"Propeller

product price: $1,217.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Type Slant-Wall, Direct-Drive
  • Propeller Dia. (In.) 48 in
  • HP 1 hp
  • Voltage 115/230
  • Opening Required H (In.) 55 1/2 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Propeller Dia. (In.) 48 in
Width (In.) 52 1/8 in
Dimension BB (In.) 53 1/4 in
Height (In.) 53 1/4 in
Venturi Depth (In.) 4 1/2 in
Dimension A (In.) 56 in
Dimension AA (In.) 51 1/2 in
Dimension C (In.) 29 1/4 in
Flange Width (In.) 2 in
Shaft Dia. (In.) 7/8 in
Venturi Clearance Dia. (In.) 5/16 in
Dimension F (In.) 58 1/8 in
Dimension E (In.) 3 in
Max. Depth (In.) 28 in
Mesh Size 1 in x 2 in
Dimension B (In.) 57 7/8 in
Dimension D (In.) 15 5/8 in
Overall Height 53 1/4 in
Overall Width 52 1/8 in
Flange Width 2 in
Venturi Depth 4 1/2 in
Grille Length 51 1/2 in
Grille Width 53 1/4 in
Shaft Diameter 7/8 in
Manufacturer Warranty Length 1 yr
Blade Diameter 48 in
For Cut-Out Width 52 7/8 in
Overall Depth 28 in
For Cut-Out Height 55 1/2 in

Description

Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 48 in, Blade Material Steel, Drive Type Direct Drive, Exhaust Airflow @ 0.000 in SP 19,100 cfm, For Cut-Out Height 55 1/2 in, For Cut-Out Width 52 7/8 in, For Maximum Wall Thickness 8 in, For Minimum Wall Thickness 6 in, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Exhaust, Housing Material Steel, Housing Finish Galvanized, Includes Mesh Screen, Includes Dehumidistat No
