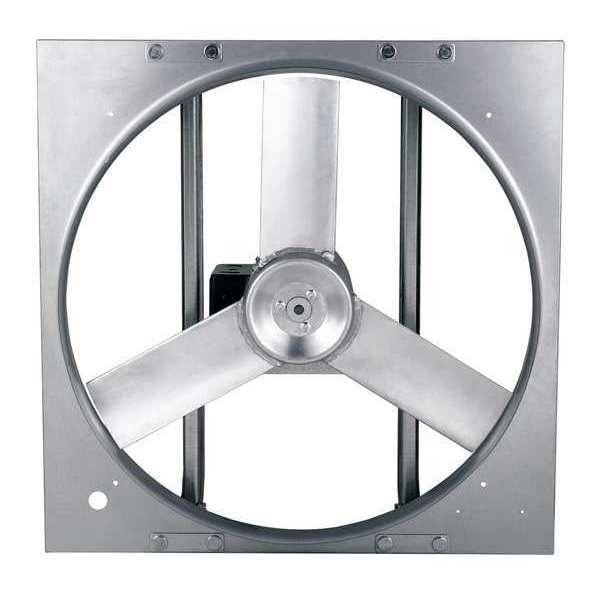

Exhaust Fan, 24 In, 208-230/460V

Mfr # 10D991
Zoro # G4022584

$743.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Industrial Direct Drive
Blade Dia. 24 in
Phase 3
Fan Voltage 208-230/460V AC
Exhaust/Supply Fan Motor HP 3/4 hp

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 10D991
Zoro # G4022584
UPC #
190735109168
Country of Origin China
Category Direct Drive Exhaust Fans

Dimensions

Blade Dia.	24 in
Dimension C (In.)	2 in
Dimension B (In.)	8 in
Dimension A (In.)	28 in
Venturi Depth (In.)	3 1/4 in
Dimension D (In.)	24 1/2 in
Flange Width (In.)	1 in
Height (In.)	28 in
Width (In.)	28 in
Max. Depth (In.)	10 in
Overall Height	28 in
Overall Width	28 in
Blade Diameter	24 in
Venturi Depth	3 1/2 in
Flange Width	1 in
Overall Depth	10 in

Details

Exhaust/Supply Fan Item	Exhaust Fan
Type	Industrial Direct Drive
Phase	3
Fan Voltage	208-230/460V AC
Exhaust/Supply Fan Motor HP	3/4 hp
Number of Blades	3
CFM @ 0.000-In. SP	7,102 cfm
Motor RPM	1,702 RPM
Propeller Material	Aluminum
Full Load Amps	3.2-3.3/1.6
Bearing Type	Ball
Motor Insulation	Class B
For Use With	General Ventilation Applications
Aluminum Wall Shutter No.	3C308
Hz	60
Speed Control	No
Intake Guard No.	1WBU3
CFM @ 0.375-In. SP	5,618 cfm
Frame Finish	Galvanized
Galvanized Wall Shutter No.	1C746
Agency Compliance	UL and cUL Listed, AMCA
Watts	559 W
CFM @ 0.250-In. SP	6,170 cfm
Drive Package Included	No
Sones @ 0.000-In. SP @ 5 Ft.	28
Item	Exhaust Fan
Motor Enclosure	Totally Enclosed Air Over
Frame Material	Steel
Mounting Position	Vertical or Horizontal
CFM @ 0.125-In. SP	6,657 cfm
Fiberglass Wall Shutter No.	5C215
Max. Ambient Temp. (F)	104 Degrees F
Sones @ 0.125-In. SP @ 5 Ft.	32
CFM @ 0.500-In. SP	5,025 cfm
Blade Material	Aluminum
Standards	AMCA, UL and cUL Listed
Voltage	208-230/460
Maximum Exhaust Airflow @ 0.000 in SP	0 to 10,000 cfm
Exhaust Airflow @ 0.000 in SP	7,102 cfm
Maximum Ambient Operating Temperature	104 Degrees F
Includes Motor	Yes
Exhaust Airflow @ 0.375 in SP	5,618 cfm
Fan Style	Panel
Mounting Orientation	Horizontal, Vertical
Nameplate Voltage	208-230/460V AC
Noise Level @ 0.000 in SP @ 5 ft	28 sones
Exhaust Airflow @ 0.125 in SP	6,657 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft	0 to 30 sones
Motor Speed	1,702 RPM
Motor Enclosure Design	Totally Enclosed Air Over (TEAO)
Maximum Noise Level	28 sones
Motor Horsepower	3/4 hp
Exhaust Airflow @ 0.500 in SP	5,025 cfm
Guard Type	None
Nominal Voltage	208-230/460V AC
Ventilation Type	Exhaust
Noise Level @ 0.125 in SP @ 5 ft	32 sones
Motor Speed Range	1601 to 1800 RPM
Exhaust Airflow @ 0.250 in SP	6,170 cfm
Enclosure Design	Totally Enclosed Motor

Description

Exhaust Fan, Blade Diameter 24 in, Blade Material Aluminum, Exhaust Airflow @ 0.000 in SP 7,102 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Type None, Maximum Noise Level 28 sones
