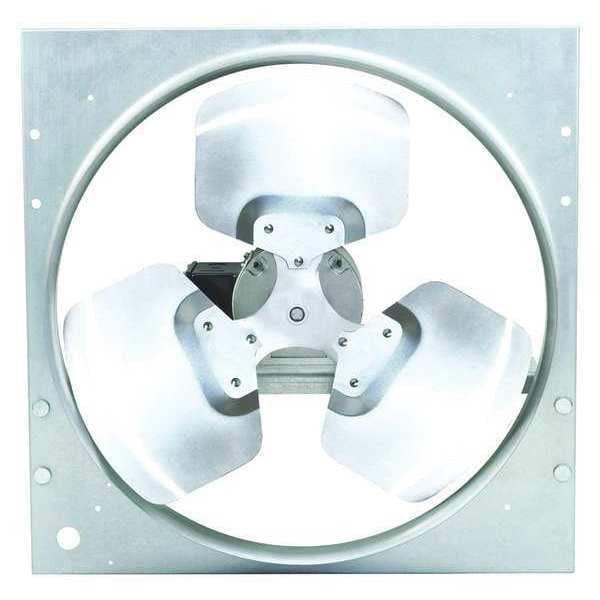

Exhaust Fan, 20 In, 115/230V

Mfr # 10D976
Zoro # G3952943

$569.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Commercial Direct Drive
Blade Dia. 20 in
Fan Voltage 115/230V AC
Phase 1
Exhaust/Supply Fan Motor HP 1/2 hp

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 10D976
Zoro # G3952943
UPC #
190735109014
Country of Origin China
Category Direct Drive Exhaust Fans

Dimensions

Blade Dia.	20 in
Height (In.)	24 in
Dimension B (In.)	7 1/2 in
Dimension D (In.)	20 5/8 in
Flange Width (In.)	1 in
Max. Depth (In.)	13 1/4 in
Width (In.)	24 in
Dimension C (In.)	5 3/4 in
Dimension A (In.)	24 in
Venturi Depth (In.)	3 1/2 in
Overall Height	24 in
Overall Width	24 in
Overall Depth	13 1/4 in
Flange Width	1 in
Blade Diameter	20 in
Venturi Depth	3 1/2 in
Duct Diameter	20 1/2 in

Details

Exhaust/Supply Fan Item	Exhaust Fan
Type	Commercial Direct Drive
Fan Voltage	115/230V AC
Phase	1
Exhaust/Supply Fan Motor HP	1/2 hp
Number of Blades	3
CFM @ 0.000-In. SP	4,495 cfm
Motor RPM	1,150 RPM
Full Load Amps	5.4/2.8
Propeller Material	Aluminum
For Use With	General Ventilation Applications
CFM @ 0.375-In. SP	2,926 cfm
Sones @ 0.000-In. SP @ 5 Ft.	18
Fiberglass Wall Shutter No.	5C214
Agency Compliance	UL and cUL Listed, AMCA
Intake Guard No.	1WBU2
CFM @ 0.250-In. SP	3,562 cfm
Bearing Type	Ball
Item	Exhaust Fan
Speed Control	No
Galvanized Wall Shutter No.	1C745
Watts	525 W
Frame Material	Steel
CFM @ 0.125-In. SP	4,134 cfm
Frame Finish	Galvanized
Mounting Position	Vertical or Horizontal
Aluminum Wall Shutter No.	4C559
Sones @ 0.125-In. SP @ 5 Ft.	20
Motor Enclosure	Totally Enclosed Air Over
Max. Ambient Temp. (F)	104 Degrees F
Drive Package Included	No
Motor Insulation	Class B
Hz	60
Blade Material	Aluminum
Standards	AMCA, UL and cUL Listed
Voltage	115/230
Guard Type	None
Wattage	500 W, 510 W
Maximum Noise Level @ 0.000 in SP @ 5 ft	0 to 30 sones
Maximum Exhaust Airflow @ 0.000 in SP	0 to 10,000 cfm
Vent Design	Ductless
Nameplate Voltage	115/230V AC
Exhaust Airflow @ 0.375 in SP	2,926 cfm
Noise Level @ 0.000 in SP @ 5 ft	18 sones
Assembled	Assembled
Nominal Voltage	115/230V AC
Exhaust Airflow @ 0.250 in SP	3,562 cfm
Speed Controllable	No
Exhaust Airflow @ 0.100 in SP	4,134 cfm
Motor Horsepower	1/2 hp
Includes Dehumidistat	No
Drive Type	Direct Drive
Motor Speed	1,150 RPM
Maximum Ambient Operating Temperature	104 Degrees F
Number of Speeds	1
Ventilation Type	Exhaust
Mounting Orientation	Horizontal, Vertical
Fan Style	Panel
Method of Construction	Stamped
Motor Enclosure Design	Totally Enclosed Air Over (TEAO)
Exhaust Airflow @ 0.125 in SP	4,134 cfm
Noise Level @ 0.125 in SP @ 5 ft	20 sones
Maximum Noise Level	18 sones
Exhaust Airflow @ 0.000 in SP	4,495 cfm
Motor Speed Range	Up to 1200 RPM
Electrical Connection	Hardwired
Includes Motor	Yes
Duct Shape	Round
Enclosure Design	Totally Enclosed Motor

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 20 1/2 in, Exhaust Airflow @ 0.000 in SP 4,495 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Type None, Includes Dehumidistat No, Maximum Noise Level 18 sones
