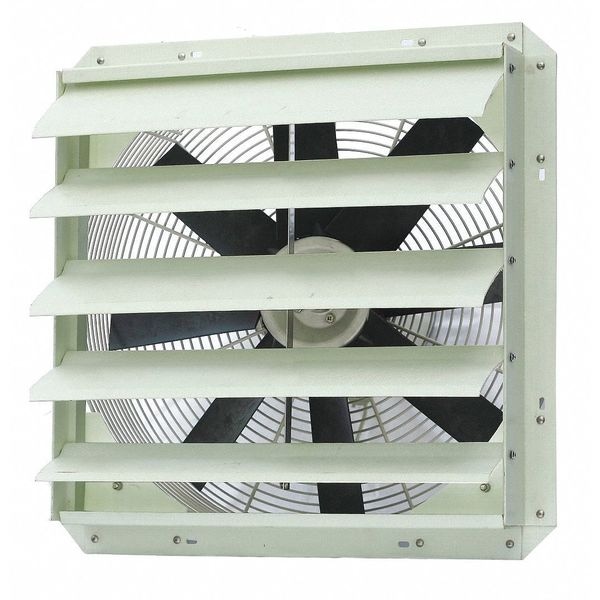

Exhaust Fan, 20 In, 115 V, 3800 CFM

Mfr # 1BLJ5
Zoro # G0970794

$673.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Corrosion Resistant Shutter Mount
Blade Dia. 20 in
Fan Voltage 115V AC
Number of Blades 8
Frame Material Fiberglass

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 1BLJ5
Zoro # G0970794
UPC #
190735131640
Country of Origin China
Category Direct Drive Corrosion Resistant Fans

Dimensions

Blade Dia.	20 in
Dimension C (In.)	6 1/4 in
Dimension B (In.)	11 in
Width (In.)	22 27/32 in
Height (In.)	22 27/32 in
Dimension E (In.)	20 in
Dimension D (In.)	3 1/8 in
Max. Depth (In.)	17 1/4 in
Dimension A (In.)	22 27/32 in
Overall Height	22 7/8 in
Overall Width	22 7/8 in
Blade Diameter	20 in
Overall Depth	17 1/4 in
For Cut-Out Width	21 in

Details

Exhaust/Supply Fan Item	Exhaust Fan
Type	Corrosion Resistant Shutter Mount
Fan Voltage	115V AC
Number of Blades	8
Frame Material	Fiberglass
Exhaust/Supply Fan Motor HP	1/3 hp
Motor RPM	1,075 RPM
CFM @ 0.000-In. SP	3,800 cfm
CFM @ 0.125-In. SP	2,920 cfm
Motor Enclosure	Totally Enclosed Air Over
Wire Guard Finish	Epoxy Coated
Max. Ambient Temp. (F)	104 Degrees F
Agency Compliance	cULus listed
Item	Exhaust Fan
Full Load Amps	2.8 A
Propeller Material	Fiberglass Reinforced Polypropylene
Bearing Type	Permanently Lubricated Sealed Ball
Drive Package Included	Yes
CFM @ 0.375-In. SP	1,580 cfm
Guard Material	Steel
Sq. Opening Required (In.)	21 in
Hz	60
Thermal Protection	Auto
Speed Control	No
Sones @ 0.000-In. SP @ 5 Ft.	7.2
CFM @ 0.250-In. SP	2,440 cfm
Motor Type	3-Phase
Phase	1
Motor Insulation	Class B
Standards	cULus listed
Voltage	115
Blade Material	Fiberglass
Motor Speed	1,075 RPM
Maximum Exhaust Airflow @ 0.000 in SP	2001 to 4000 cfm
Noise Level @ 0.000 in SP @ 5 ft	7.2 sones
Exhaust Airflow @ 0.000 in SP	3,800 cfm
Motor Enclosure Design	Totally Enclosed Air-Over (TEAO)
Includes Motor	Yes
Fan Style	Shutter-Mounted
Guard Finish	Coated
Motor Horsepower	1/3 hp
Maximum Noise Level @ 0.000 in SP @ 5 ft	7.1 to 8.0 sones
Ventilation Type	Exhaust
Exhaust Airflow @ 0.125 in SP	2,920 cfm
Nominal Voltage	115V AC
Maximum Ambient Operating Temperature	104 Degrees F
Exhaust Airflow @ 0.250 in SP	2,440 cfm
Exhaust Airflow @ 0.375 in SP	1,580 cfm
Maximum Noise Level	7.2 sones
Number of Speeds	1
Nameplate Voltage	115V AC

Description

Exhaust Fan, Blade Diameter 20 in, Blade Material Fiberglass, Exhaust Airflow @ 0.000 in SP 3,800 cfm, For Cut-Out Width 21 in, Frame Material Fiberglass, Guard Finish Coated, Guard Material Steel, Maximum Noise Level 7.2 sones
