Shop All Direct Drive Corrosion Resistant Shutter Mount Fans

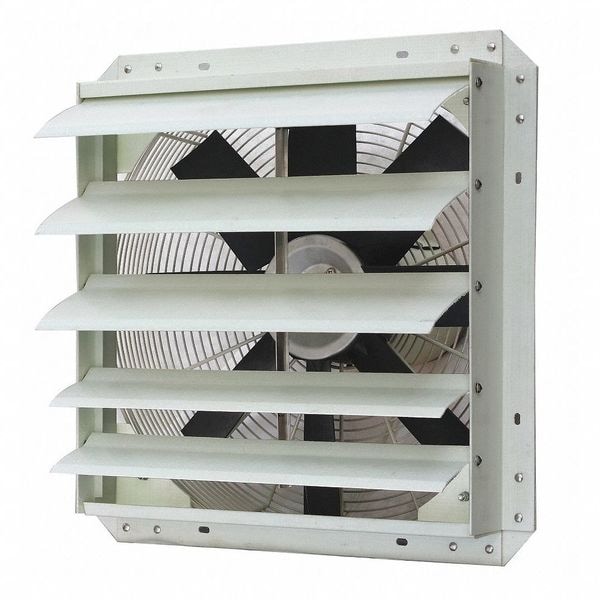

Exhaust Fan, 18 In, 115 V, 2616 CFM

Mfr # 1BLJ3
Zoro # G2996454

$611.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Corrosion Resistant Shutter Mount
Blade Dia. 18 in
Fan Voltage 115V AC
Number of Blades 8
Frame Material Fiberglass

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 1BLJ3
Zoro # G2996454
UPC #
190735131633
Country of Origin China
Category Direct Drive Corrosion Resistant Shutter Mount Fans

Dimensions

Blade Dia.	18 in
Width (In.)	21 in
Dimension C (In.)	6 1/4 in
Dimension D (In.)	3 1/8 in
Max. Depth (In.)	16 31/32 in
Dimension B (In.)	10 23/32 in
Height (In.)	21 in
Dimension A (In.)	21 in
Dimension E (In.)	18 in
Overall Width	21 in
Overall Height	21 in
Blade Diameter	18 in
Overall Depth	17 in
For Cut-Out Width	19 in

Details

Exhaust/Supply Fan Item	Exhaust Fan
Type	Corrosion Resistant Shutter Mount
Fan Voltage	115V AC
Number of Blades	8
Frame Material	Fiberglass
Exhaust/Supply Fan Motor HP	1/4 hp
CFM @ 0.000-In. SP	2,616 cfm
CFM @ 0.125-In. SP	1,940 cfm
CFM @ 0.250-In. SP	1,490 cfm
Guard Material	Steel
Agency Compliance	cULus listed
Propeller Material	Fiberglass Reinforced Polypropylene
Motor Insulation	Class B
Drive Package Included	No
Wire Guard Finish	Epoxy Coated
Item	Exhaust Fan
Max. Ambient Temp. (F)	104 Degrees F
Thermal Protection	Auto
Sq. Opening Required (In.)	19 in
Motor Enclosure	Totally Enclosed Air Over
Full Load Amps	2.7 A
Hz	60
Phase	1
Sones @ 0.000-In. SP @ 5 Ft.	7.2
CFM @ 0.375-In. SP	437 cfm
Motor Type	3-Phase
Motor RPM	1,075 RPM
Speed Control	No
Bearing Type	Permanently Lubricated Sealed Ball
Voltage	115
Standards	cULus listed
Includes Motor	Yes
Exhaust Airflow @ 0.375 in SP	437 cfm
Motor Enclosure Design	Totally Enclosed Air-Over (TEAO)
Maximum Noise Level @ 0.000 in SP @ 5 ft	7.1 to 8.0 sones
Nominal Voltage	115V AC
Blade Material	Fiberglass
Number of Speeds	1
Motor Speed	1,075 RPM
Maximum Noise Level	7.2 sones
Nameplate Voltage	115V AC
Exhaust Airflow @ 0.125 in SP	1,940 cfm
Motor Horsepower	1/4 hp
Ventilation Type	Exhaust
Fan Style	Shutter-Mounted
Maximum Ambient Operating Temperature	104 Degrees F
Guard Finish	Coated
Exhaust Airflow @ 0.250 in SP	1,490 cfm
Noise Level @ 0.000 in SP @ 5 ft	7.2 sones
Exhaust Airflow @ 0.000 in SP	2,616 cfm
Maximum Exhaust Airflow @ 0.000 in SP	2001 to 4000 cfm

Description

Exhaust Fan, Blade Diameter 18 in, Blade Material Fiberglass, Exhaust Airflow @ 0.000 in SP 2,616 cfm, For Cut-Out Width 19 in, Frame Material Fiberglass, Guard Finish Coated, Guard Material Steel, Maximum Noise Level 7.2 sones
