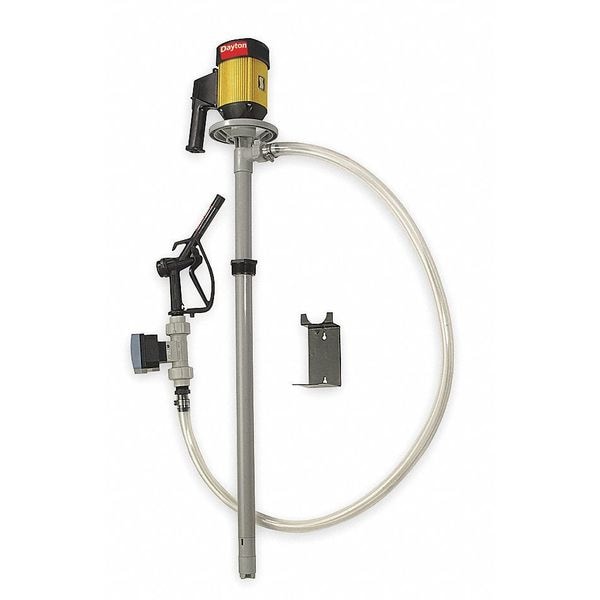

Drum Pump, 110VAC, 1 HP, 60 Hz

Mfr # 1DLR3
Zoro # G3264344

$2,275.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

For Use With 9500
Housing Material Polypropylene
Inlet Size 1.6"
Motor Type Electric AC Brush
Voltage 110vac

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Dayton
MFR # 1DLR3
Zoro # G3264344
UPC #
190735135365
Country of Origin United States
Category Electric Drum Pumps

Dimensions

Inlet Size	1.6"
Discharge Tube Length	6 ft.
Adapter Dia.	2"
Suction Tube Length	39 in
Outlet Size	1" barb
Overall Length	51 in
Height	39"
Cord Length	16 ft
Hose Inside Dia.	1 in
Hose Length	72 in
For Container Size	55 gal
Hose Outside Dia.	1 1/4 in
Bung Connection Dia.	2 in

Details

For Use With	9500
Housing Material	Polypropylene
Motor Type	Electric AC Brush
Voltage	110vac
Action Type	Centrifugal
Max. Flow GPM	32 gpm
Application	To Transfer Very Concentrated and Extremely Aggressive Liquids
Standards	UL Recognized Component (Motor Only)
Type	Motor and Tube
Agency Compliance	ETL Recognized Component(Motor Only)
GPM	32
Discharge Tubing Material	PVC
Pump Body Material	Polypropylene
Max. Pressure	16 psi
Wetted Materials	Carbon Graphite, Ceramic, Halar, Hastelloy C-276, Polypropylene, PVC, PVDF, Viton
Hz	60
Max. Viscosity	300 cps
Max. GPM for Water	35
Suction Tube Type	Centrifugal
RPM	10,000
Max. Temp.	130 Degrees F
Item	Electric Operated Drum Pump
Metered	Yes
Max. GPM for Oil	7
Motor Enclosure	ODP
DEF Compatible	No
Adapter Material	Polypropylene
Self-Priming	Yes
Phase	1
HP	1
Max. Liquid Temp.	130 Degrees F
Max. Head	36 ft.
Adapter Type	Bung
Nozzle Operation	Manual
Frequency (Hz)	50/60 Hz
Seal Material	Sealless
Max. Head Pressure	16 psi
Suction Tube ID	1 3/8 in
Nozzle Material	Polypropylene
Includes Discharge Hose	Yes
For Media Type	Acetic Acid, Ammonia, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Glycerin, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water
Suction Tube OD	1 5/8 in
Full Load Amps	8.5 A
Motor RPM	0-10,000
Includes Nozzle	Yes
Number of Phases	1
Noise Level	84 db
Discharge Connection Type	Hose Barb
Variable Speed	Yes
Plug Type	NEMA 5-15-P
Max. Oil Flow	7 gpm
Max. Flow Rate	13 gpm
Housing Material - Pumps	Polypropylene
Includes Suction Tube	Yes
Hose Cover Material	PVC
Discharge Tube Outlet ID	1 in
Compatible Chemicals	Acetic Acid 20%, Acetic Acid 80%, Ammonia (Liquids), Calcium Chloride, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sulfuric Acid (10% - 75%)
Runs Dry	Yes
Power Source	Electric
Motor HP	1 1/10 hp
Discharge Tube Outlet OD	1 1/2 in
Diesel Exhaust Fluid Compatible	No
Duty Cycle	Intermittent
Spout Connection Type	Hose Barb
Max. Fluid Temp.	130 Degrees F
For Container Type	Drum
Includes Spout	No
Thermal Protection	Yes
Not Recommended Chemicals	Acetic Acid (Glacial), Acetone, Ammonium Hydroxide, Chromic Acid 30%, Cyclohexane, DEF, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Heptane, Hexane, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Xylene
Includes Bung Adapter	Yes
Food Grade	No
Max. Head - Pumps	36 ft
Hose Tube Material	PVC
Suction Tube Material	Polypropylene
Max. Outlet Pressure	16 psi
Adapter Connection Type	MNPT
Rated Voltage	110V AC
Gear Lube	NT
Grease	NT

Description

Electric Operated Drum Pump, Hose Inside Dia. 1 in, Max. Head Pressure 16 psi, Max. Oil Flow 7 gpm, Max. Outlet Pressure 16 psi, For Use With 9500, Rated Voltage 110V AC, Plug Type NEMA 5-15-P, Suction Tube OD 1 5/8 in, Hose Length 72 in, Suction Tube Length 39 in, Cord Length 16 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 50/60 Hz, Power Source Electric, Variable Speed Yes, Includes Discharge Hose Yes, Self-Priming Yes
