  9. Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 41 GPM
Shop All Diaphragm Pumps
Dayton

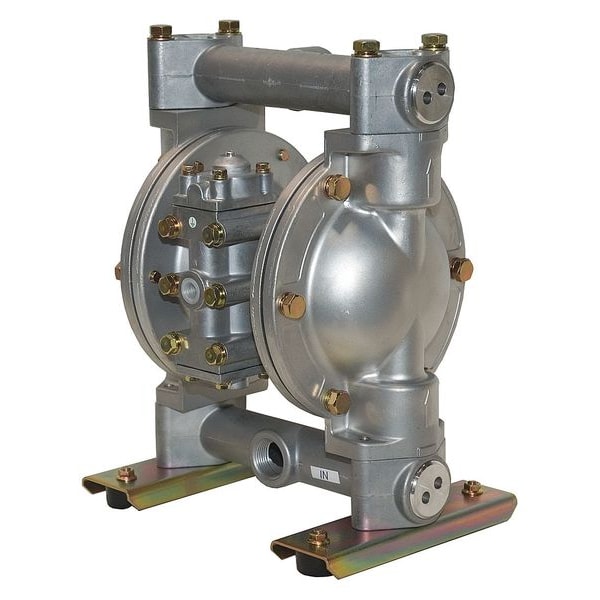

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 41 GPM

product price: $1,341.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Aluminum
  • Diaphragm Material - Pumps PTFE
  • Max. Flow 41 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 212 Degrees F
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Inlet/Outlet Size 1 in
Air Inlet Size 3/8 in FNPT
Height 15 3/32 in
Max. Dia. Solids 3/16 in
Width 11 5/16 in
Manufacturers Warranty Length 1 yr
Length 8 1/2 in
Overall Width 11.3 in
Overall Length 8.5 in
Overall Height 15.1 in
Fluid Connection Size 1 in
Solid Diameter (Maximum) 0.19 in
Air Intake Connection Size 3/8 in
Overall Size 8.5 in x 11.3 in x 15.1 in
Media Intake Connection Size 1 in
Media Discharge Size 1 in
Media Intake Size 1 in
Media Discharge Connection Size 1 in

Description

Double Diaphragm Pump, Air Consumption (Maximum) 55 scfm, Air Intake Connection Size 3/8 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 41 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type FNPT, Media Intake Location Bottom
