Crosby

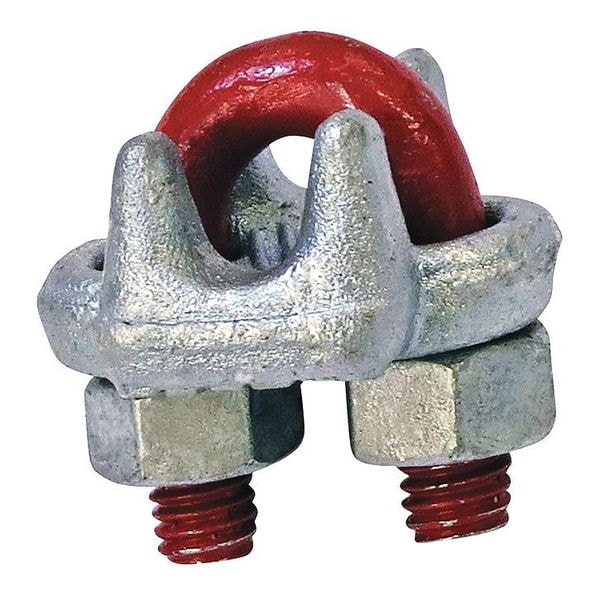

Wire Rope Clip, U-Bolt, 1-1/4in

product price: $71.55
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Clip Type U-Bolt Clip
  • For Wire Rope Dia. 1 1/4 in
  • Min. Number of Clips 7
  • Material Steel
  • Rope Turn Back 44 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

For Wire Rope Dia. 1 1/4 in
Wire Rope Dia. 1-1/4"
Compatible Rope Diameter - Maximum 1 1/4 in
Rope Turnback Length 44 in

Details

Item Wire Rope Clip
Clip Type U-Bolt Clip
Min. Number of Clips 7
Material Steel
Rope Turn Back 44 in
Min. Torque 360 ft-lb
Finish Painted
Standards ASME B30.26
Includes (2) Nuts, Saddle, U-Bolt
Minimum Installation Torque 360 ft-lb
Compatible Core Type Wire Strand Core
Minimum Number of Clips Required 7
Compatible Strand Classification 6 x 19, 6 x 37
Load Efficiency Rating 90 %
Fabrication Forged
Color Red, Silver
Lifting Capability For Lifting

Description

Wire Rope U-Bolt Clip, Compatible Rope Diameter - Minimum Not Applicable, Compatible Rope Diameter - Maximum 1 1/4 in, Rope Turnback Length 44 in, Material Steel, Minimum Installation Torque 360 ft-lb, Compatible Core Type Wire Strand Core, Clip Type U-Bolt Clip, Fabrication Forged, Compatible Strand Classification 6 x 19, 6 x 37, Load Efficiency Rating 90 Percent, Color Red, Silver, Lifting Capability For Lifting, Minimum Number of Clips Required 7, Finish Galvanized, Standards ASME B30.26
