Shop All Specialty Switches
Corcom

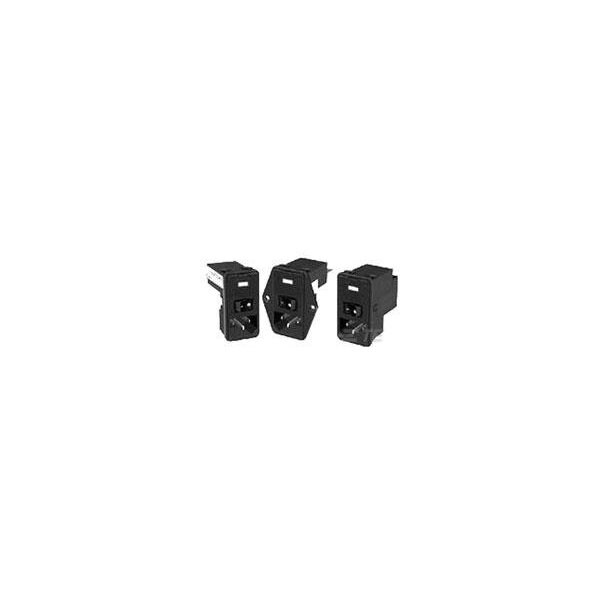

PS000DMXE=C7088
Mfr # PS000DMXE
Zoro # G600985070
original price:
$42.46
8% off
Sold in multiples of 2 for $77.58
$77.58
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- For Use With P Series
- Panel Thickness Range (mm) .7874 to 2
- Voltage Selection Single
- Leakage Current (Max) (120VAC, 60Hz) (µA) 250
- Switch Type None
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Corcom
- MFR # PS000DMXE
- Zoro # G600985070
- Country of Origin China
- Category Specialty Switches
Details
For Use With | P Series |
Panel Thickness Range (mm) | .7874 to 2 |
Voltage Selection | Single |
Leakage Current (Max) (120VAC, 60Hz) (µA) | 250 |
Switch Type | None |
Operating Temperature Range (°C) | -10 to 40 |
Input Voltage Select | Single AC |
Current Rating (A) | 3 |
Filter Type | Power Entry Module |
Mount Style | Snap-In |
Fuse Options | Dual |
Mount Angle | Vertical |
Shield Style | Complete Can |
Voltage (Max) (VAC) | 250 |
Leakage Current (Max) (250VAC, 50Hz) (µA) | 500 |
Input Type | IEC |
Output Type | .187" FASTON |
Filtered | Yes |
Type of Connector | IEC 60320-1 C-14 |
