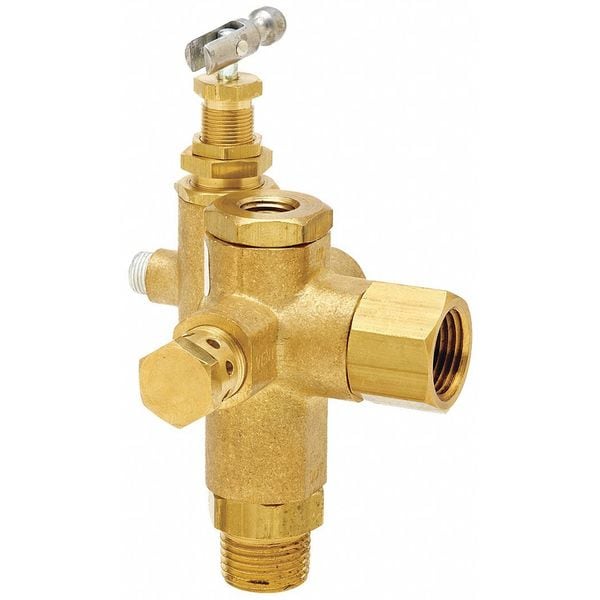

Unloader Valve Mark 4
Mfr # LGM40-0401CBA1
Zoro # G0602056
original price:
$217.35
25% off
new price: $160.99
/ea
Free Shipping & Returns
$160.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Max. Operating Temp. (F) 250 Degrees F
- Max. Flow (CFM) 40
- Pressure Range (PSI) 60 to 250 psi
- Body Material Forged Brass
- (F)NPT Outlet (In.) 1/2 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Control Devices
- MFR # LGM40-0401CBA1
- Zoro # G0602056
- Country of Origin United States
- Category Pilot Air Control Valves
Dimensions
| Dimensions (L X H) (In.) | 3-19/64 x 5-13/64 |
| Outlet Size | 1/2 in |
| Exhaust Size | 3/8 in |
Details
| Max. Operating Temp. (F) | 250 Degrees F |
| Max. Flow (CFM) | 40 |
| Pressure Range (PSI) | 60 to 250 psi |
| Body Material | Forged Brass |
| Item | Unloader Valve Mark 4 |
| (F)NPT Outlet (In.) | 1/2 in |
| Preset | To Cut In at 95 psi and Out at 115 psi |
| Type | Load Genie |
| Spring Material | Stainless Steel |
| (F)NPT Vent Outlet (In.) | 3/8 in |
| (M)NPT Inlet (In.) | 1/2 in |
| Application | Continuously Running Compressor |
| Poppet Material | Glass-Filled PTFE |
| Maximum Operating Pressure | 250 psi |
| Inlet Type | Compression; NPT |
| Exhaust Type | FPT |
| Maximum Air Flow | 40 cfm |
| Exhaust Gender | Female |
| Series | Genie |
| Outlet Type | NPT |
| Minimum Operating Pressure | 60 psi |
Description
Unloader Valve Mark 4, Inlet Type Compression; NPT, Outlet Size 1/2 in, Outlet Type NPT, Exhaust Size 3/8 in, Exhaust Type FPT, Exhaust Gender Female, Maximum Operating Pressure 250 psi, Minimum Operating Pressure 60 psi, Maximum Air Flow 40 cfm, Body Material Forged Brass
