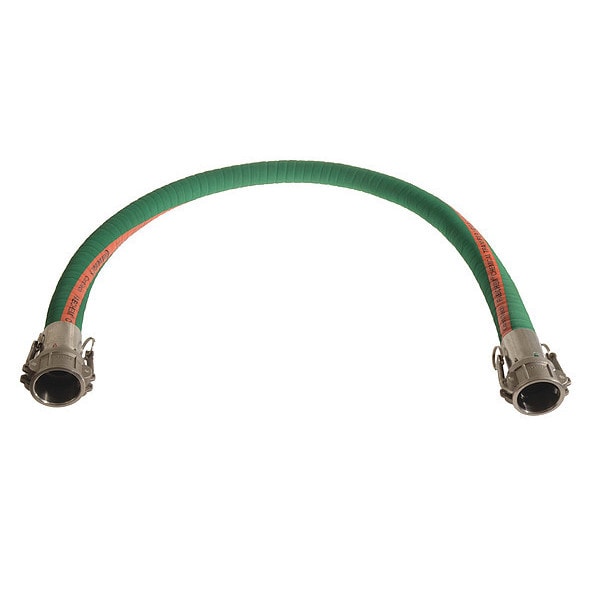

Chemical Hose Assembly, 1" ID x 36

Mfr # FAB100-03CC-G
Zoro # G6157302

$160.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Hose Inside Dia. 1 in
Hose Length 36 in
Fitting Type F Cam and Groove x F Cam and Groove
Hose Color Green with Orange Stripe
Fitting Size 1 in x 1 in

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Continental
MFR # FAB100-03CC-G
Zoro # G6157302
Country of Origin Canada
Category Stainless Steel Hose Assembly

Dimensions

Hose Inside Dia.	1 in
Hose Length	36 in
Fitting Size	1 in x 1 in
Hose Fitting A Size	1 in
Bend Radius	4 in
Hose Fitting B Size	1 in
Hose Outside Dia.	1 1/2 in

Details

Fitting Type	F Cam and Groove x F Cam and Groove
Hose Color	Green with Orange Stripe
Max. Working Pressure @ 70 F	200 psi
Fitting Material	301 Stainless Steel x 301 Stainless Steel
Temp. Range	-40 Degrees to 150 Degrees F
Standards	FDA, 3-A, USDA
Hose Cover Material	EPDM
Hose Tube Material	Polyethylene
Item	Chemical Hose Assembly
Safety Factor	4:1
Hose Fittings	316 Stainless Steel 1 in F Cam and Groove x 316 Stainless Steel 1 in F Cam and Groove
Burst Pressure	800 psi
Hose Fitting A Type	F Cam and Groove
Hose Reinforcement Material	Carbon Steel
Static Control Wire	Yes
Hose Fitting B Type	F Cam and Groove
Hose Configuration	Coupled Assembly
Hose Fitting A Material	316 Stainless Steel
Hose Fitting B Material	316 Stainless Steel
Not Recommended Chemicals	Ammonia (Liquids), Anhydrous Ammonia, Methyl Chloride, Nitric Acid (50% Solution), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%)
For Media Type	Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Ketones, Ethanol, Isopropanol, Methanol, Antifreeze, Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate, Cyclohexane, Kerosene, Stoddard Solvent, Ethyl Acetate, Formaldehyde, Ammonium Hydroxide, Sodium Hydroxide, Bleach, Potassium Hydroxide (50%), Lacquer Thinners, Xylene, Motor Oil, Sodium Bisulfate, Sodium Bisulfite, Naphtha, Paint Thinner, Turpentine, Carbon Dioxide, Hydrogen Peroxide, Mineral Oil
Compatible Chemicals	Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Formic Acid, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Paint Thinner, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Turpentine, Xylene

Description

Chemical Hose Assembly, Hose Inside Dia. 1 in, Hose Outside Dia. 1 1/2 in, Hose Length 36 in, Hose Tube Material Polyethylene, Hose Cover Material EPDM, Hose Reinforcement Type Helix, Hose Reinforcement Material Carbon Steel, Hose Color Green with Orange Stripe, Burst Pressure 800 psi, Max. Working Pressure @ 70 F 200 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 150 Degrees F, Bend Radius 4 in, Hose Configuration Coupled Assembly, Hose Fitting A Size 1 in, Hose Fitting B Size 1 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
