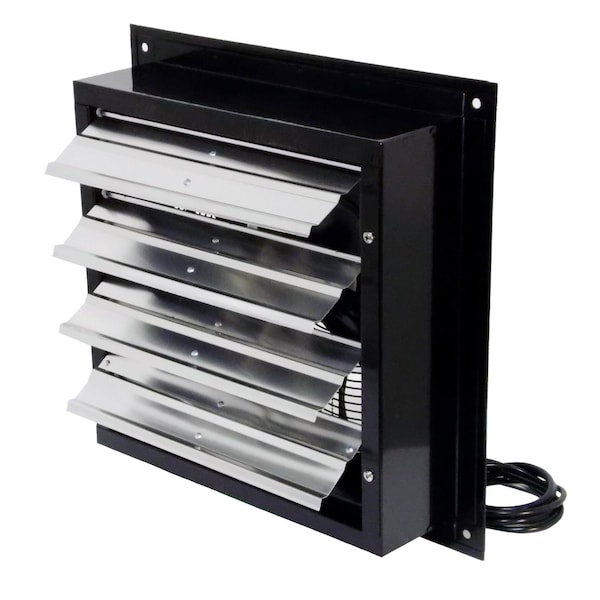

Shutter Mount Exhaust Fan, 24", 2 Speed, 4700/3800 cfm, 115V

Mfr # XFS24
Zoro # G8509094

$417.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Blade Dia. 24 in
Number of Speeds 2
Fan Voltage 115V AC
CFM @ 0.000-In. SP 4700/3800
Exhaust/Supply Fan Motor HP 1/2 hp

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Canarm
MFR # XFS24
Zoro # G8509094
UPC #
062345353852
Country of Origin China
Category Shutter Mount Exhaust Fans

Dimensions

Blade Dia.	24 in
Width	28 7/8 in
Height	28 7/8 in
Max. Depth	11 1/8 in
Overall Width	28 7/8 in
Manufacturer Warranty Length	1 yr
Overall Depth	11 1/8 in
For Cut-Out Width	26 in
Overall Diameter	28 7/8 in
For Cut-Out Length	26 in
For Cut-Out Height	26 in
Power Cord Length	9 ft
Overall Height	28 7/8 in
Blade Diameter	24 in

Details

Exhaust/Supply Fan Item	Exhaust Fan
Number of Speeds	2
Fan Voltage	115V AC
CFM @ 0.000-In. SP	4700/3800
Exhaust/Supply Fan Motor HP	1/2 hp
Square Opening Required	20-1/2 to 30 in
Blade Material	Steel
Max. Ambient Temp.	40 Degrees C
Frame Finish	Powder Coated
Phase	1
Includes	Power Cord with 115V 3 Prong Plug, Shutter, Wire Guard
Motor Enclosure	Totally Enclosed Air Over
Number of Blades	5
Frame Material	Steel
Voltage	115V
Full Load Amps	5.0/4.3
Guard Material	Steel
Standards	ETL, OSHA Compliant
Bearing Type	Permanently Lubricated Sealed Ball
Motor Type	3-Phase
Motor Insulation	Class A
Drive Package Included	Yes
Thermal Protection	Yes
Wire Guard Finish	Powder Coated
Hz	60
Speed Control Item Number	CN5061
Motor RPM	1140/1070
Item	Shutter Mount Exhaust Fan
Assembled	Assembled
Drive Type	Direct Drive
Exhaust Airflow @ 0.100 in SP	4,700 cfm
Speed Controllable	Yes
Includes Motor	Yes
For Maximum Wall Thickness	5 in
Exhaust Airflow @ 0.125 in SP	4,700 cfm
Nominal Voltage	115V AC
Maximum Airflow	4,700 cfm
Method of Construction	Stamped
Noise Level @ 0.000 in SP @ 5 ft	21 sones
Frequency	60 Hz
For Minimum Wall Thickness	5 in
Full Load Current	5 A
Nameplate Voltage	115V AC
Housing Finish	Powder-Coated
Maximum Noise Level @ 0.000 in SP @ 5 ft	Greater than 9.0 sones
Wattage	575 W
Guard Type	Intake
Motor Horsepower	1/2 hp
Electrical Connection	Plug-In
Maximum Exhaust Airflow @ 0.000 in SP	4001 to 6000 cfm
Housing Material	Steel
Motor Enclosure Design	Totally Enclosed Air-Over (TEAO)
Exhaust Airflow @ 0.000 in SP	4,700 cfm
Includes Dehumidistat	No
Includes Grill	No
Ventilation Type	Exhaust
Control Type	Pull Chain
Maximum Noise Level	21 sones
Supply Airflow @ 0.000 in SP	4,700 cfm
Number of Fans	1
Fan Style	Shutter-Mounted
Vent Design	Ductless
Guard Finish	Powder Coated
Maximum Ambient Operating Temperature	158 Degrees F
Noise Level @ 0.100 in SP @ 5 ft	21 sones
Motor Speed	1,140 RPM

Description

Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 24 in, Blade Material Steel, Control Type Pull Chain, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 4,700 cfm, For Cut-Out Height 26 in, For Cut-Out Width 26 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Powder Coated, Guard Material Steel, Guard Type Intake, Housing Material Steel
