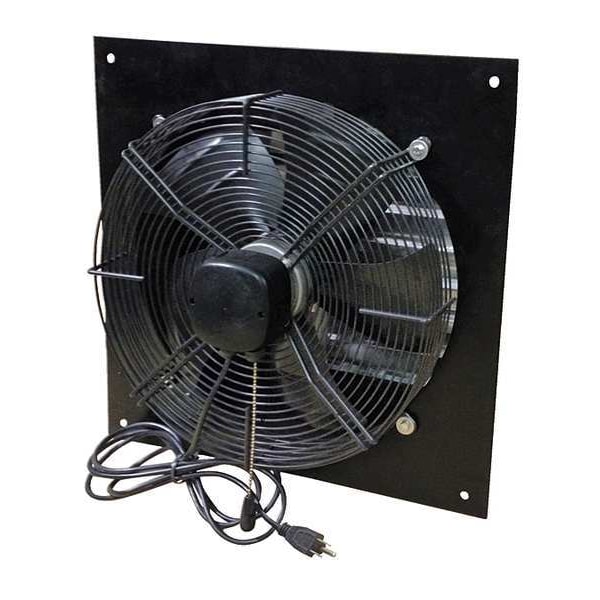

Shutter Mount Exhaust Fan, 20", 2 Speed, 3300/2900 cfm, 115V

Mfr # XFS20
Zoro # G8509085

$325.99

9% off

$293.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Blade Dia. 20 in
Number of Speeds 2
Fan Voltage 115V AC
CFM @ 0.000-In. SP 3300/2900
Exhaust/Supply Fan Motor HP 1/4 hp

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Canarm
MFR # XFS20
Zoro # G8509085
UPC #
062345353845
Country of Origin China
Category Shutter Mount Exhaust Fans

Dimensions

Blade Dia.	20 in
Width	24 7/8 in
Height	24 7/8 in
Max. Depth	9 1/2 in
Overall Depth	9 1/2 in
Manufacturer Warranty Length	1 yr
Blade Diameter	20 in
For Cut-Out Height	22 in
Overall Width	24 7/8 in
Power Cord Length	9 ft
Overall Diameter	24 7/8 in
Overall Height	24 7/8 in
For Cut-Out Width	22 in
For Cut-Out Length	22 in

Details

Exhaust/Supply Fan Item	Exhaust Fan
Number of Speeds	2
Fan Voltage	115V AC
CFM @ 0.000-In. SP	3300/2900
Exhaust/Supply Fan Motor HP	1/4 hp
Square Opening Required	20-1/2 to 30 in
Standards	ETL, OSHA Compliant
Motor Insulation	Class A
Item	Shutter Mount Exhaust Fan
Thermal Protection	Yes
Guard Material	Steel
Voltage	115V
Speed Control Item Number	CN5061
Motor RPM	1140/1050
Max. Ambient Temp.	40 Degrees C
Motor Type	3-Phase
Number of Blades	5
Includes	Power Cord with 115V 3 Prong Plug, Shutter, Wire Guard
Wire Guard Finish	Powder Coated
Phase	1
Hz	60
Bearing Type	Permanently Lubricated Sealed Ball
Full Load Amps	2.3/2.0
Frame Finish	Powder Coated
Motor Enclosure	Totally Enclosed Air Over
Frame Material	Steel
Blade Material	Steel
Drive Package Included	No
Supply Airflow @ 0.000 in SP	3,300 cfm
For Minimum Wall Thickness	5 in
Maximum Exhaust Airflow @ 0.000 in SP	2001 to 4000 cfm
Speed Controllable	Yes
Number of Fans	1
Motor Enclosure Design	Totally Enclosed Air-Over (TEAO)
Nominal Voltage	115V AC
Noise Level @ 0.100 in SP @ 5 ft	16 sones
Full Load Current	2.3 A
Control Type	Pull Chain
Exhaust Airflow @ 0.100 in SP	3,300 cfm
Includes Motor	Yes
Method of Construction	Stamped
Exhaust Airflow @ 0.125 in SP	3,300 cfm
Noise Level @ 0.000 in SP @ 5 ft	17 sones
Fan Style	Shutter-Mounted
Wattage	264 W
Exhaust Airflow @ 0.000 in SP	3,300 cfm
Guard Finish	Powder Coated
Guard Type	Intake
Housing Material	Steel
Maximum Airflow	3,300 cfm
Motor Horsepower	1/4 hp
Vent Design	Ductless
Nameplate Voltage	115V AC
Maximum Ambient Operating Temperature	158 Degrees F
For Maximum Wall Thickness	5 in
Electrical Connection	Plug-In
Housing Finish	Powder-Coated
Maximum Noise Level	17 sones
Motor Speed	1,140 RPM
Includes Grill	No
Ventilation Type	Exhaust
Includes Dehumidistat	No
Assembled	Assembled
Frequency	60 Hz
Maximum Noise Level @ 0.000 in SP @ 5 ft	Greater than 9.0 sones
Drive Type	Direct Drive

Description

Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 20 in, Blade Material Steel, Control Type Pull Chain, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 3,300 cfm, For Cut-Out Height 22 in, For Cut-Out Width 22 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Powder Coated, Guard Material Steel, Guard Type Intake, Housing Material Steel
