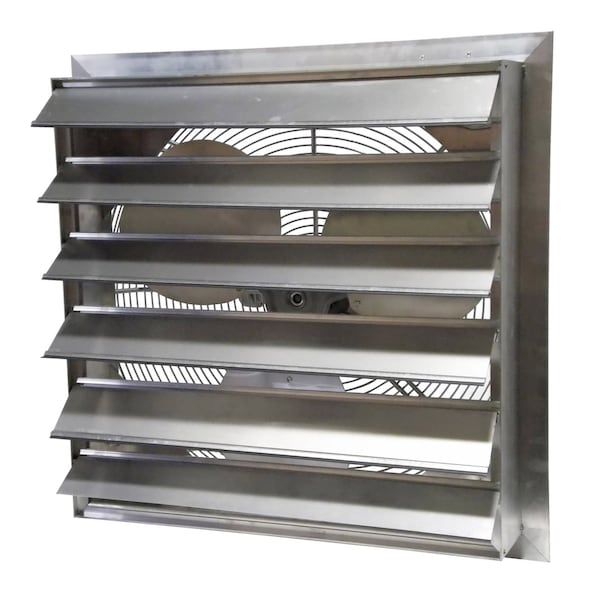

Exhaust Fan, Hazardous Location, 24 In

Mfr # AX24-4
Zoro # G6551851

$1,388.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Drive Package With Motor Included No
Frame Finish Powder Coated
Dimension C (In.) 5 in
CFM @ 0.000-In. SP 5,520 cfm
Dimension A (In.) 28 3/4 in

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Canarm
MFR # AX24-4
Zoro # G6551851
UPC #
062345206288
Country of Origin Canada
Category Exhaust and Supply Fan Accessories

Dimensions

Dimension C (In.)	5 in
Dimension A (In.)	28 3/4 in
Outside Dia. (In.)	28 3/4 in
Max. Depth (In.)	18 3/4 in
Width (In.)	28 3/4 in
Shaft Dia. (In.)	1/2 in
Flange Width (In.)	1 1/2 in
Venturi Clearance Dia. (In.)	1/8 in
Height (In.)	28 3/4 in
Dimension B (In.)	25 3/4 in
Dimension D (In.)	13 3/4 in
Venturi Depth (In.)	5/8 in
Blade Dia.	24 in
Overall Height	28 3/4 in
Overall Width	28 3/4 in
Flange Width	1 1/2 in
Venturi Depth	5/8 in
Blade Diameter	24 in
Manufacturer Warranty Length	1 yr
Overall Depth	18 3/4 in
For Cut-Out Width	25 in
Overall Diameter	28 3/4 in
Venturi Diameter	1/8 in
Shaft Diameter	1/2 in
For Cut-Out Height	25 in

Details

Item	Shutter Mounted Hazardous Location Exhaust Fan
Drive Package With Motor Included	No
Frame Finish	Powder Coated
Exhaust/Supply Fan Item	Exhaust Fan
CFM @ 0.000-In. SP	5,520 cfm
Exhaust/Supply Fan Motor HP	1/3 hp
Max. Ambient Temp. (F)	104 Degrees F
Hazardous Location Class	Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Number of Blades	3
Motor Insulation	Class B
For Use With	General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Type	Explosion Proof
Hz	60
Motor RPM	1,725 RPM
Mounting Position	Horizontal
Watts	250 W
CFM @ 0.250-In. SP	5,130 cfm
Frame Material	Aluminum
Full Load Amps	6.6/3.1-3.3
Propeller Material	Aluminum
Includes	Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutter, Wire Guard
CFM @ 0.125-In. SP	5,330 cfm
Sones @ 0.000-In. SP @ 5 Ft.	30
Phase	1
Motor Type	Single Phase
Motor Enclosure	Totally Enclosed Air Over
Fan Voltage	115/208-230V AC
Bearing Type	Ball
Agency Compliance	cETLus
Drive Package Included	No
Standards	OSHA Compliant
Voltage	115/208-230
Maximum Exhaust Airflow @ 0.000 in SP	4001 to 6000 cfm
Guard Finish	Chrome
Maximum Noise Level	30 sones
Mounting Orientation	Horizontal
Guard Type	Intake
Method of Construction	Stamped
Includes Grill	No
Includes Motor	No
Exhaust Airflow @ 0.250 in SP	5,130 cfm
Ventilation Type	Exhaust
Guard Material	Steel
Blade Material	Aluminum
Motor Enclosure Design	Totally Enclosed Air-Over (TEAO)
Supply Airflow @ 0.000 in SP	5,520 cfm
Exhaust Airflow @ 0.100 in SP	5,410 cfm
Frequency	50 Hz
Square Opening Required	20-1/2 to 30 in
Maximum Noise Level @ 0.000 in SP @ 5 ft	Greater than 9.0 sones
Assembled	Assembled
Full Load Current	6.6 A
Noise Level @ 0.100 in SP @ 5 ft	30 sones
Noise Level @ 0.000 in SP @ 5 ft	30 sones
Nominal Voltage	115/208-230V AC
Motor Horsepower	1/3 hp
Includes Dehumidistat	No
Speed Controllable	No
Fan Style	Shutter-Mounted
Number of Fans	1
Electrical Connection	Hardwired
Exhaust Airflow @ 0.000 in SP	5,520 cfm
Vent Design	Ductless
For Maximum Wall Thickness	5 in
Housing Material	Aluminum
Maximum Airflow	5,520 cfm
Housing Finish	Aluminum
Control Type	Rotary Dial
Nameplate Voltage	115/208-230V AC
Wattage	250 W
Motor Speed	1,725 RPM
For Minimum Wall Thickness	5 in
Exhaust Airflow @ 0.125 in SP	5,330 cfm
Discharge Direction	Horizontal
Drive Type	Direct Drive
Number of Speeds	1
Maximum Ambient Operating Temperature	104 Degrees F
Speed Control	No

Description

Shutter Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 24 in, Blade Material Aluminum, Control Type Rotary Dial, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 5,520 cfm, For Cut-Out Height 25 in, For Cut-Out Width 25 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Aluminum, Guard Finish Chrome, Guard Material Steel, Guard Type Intake
