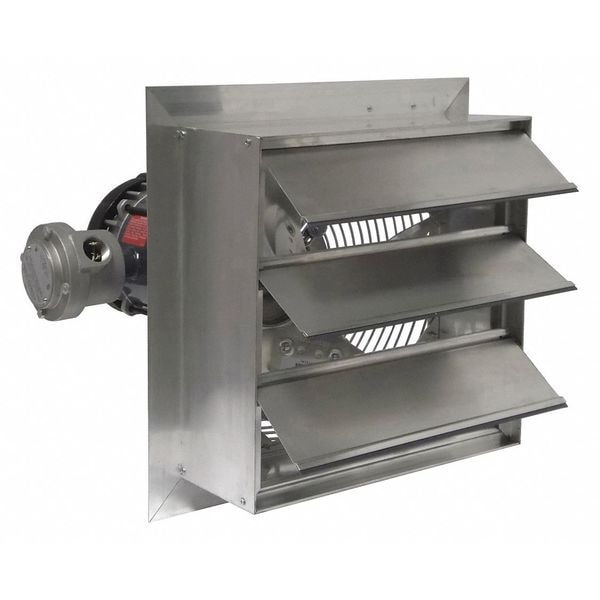

Exhaust Fan, Hazardous Location, 14 In

Mfr # AX14-4
Zoro # G6849211

$1,121.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Type Explosion Proof
Blade Dia. 14 in
Fan Voltage 115/208-230V AC
Exhaust/Supply Fan Motor HP 1/3 hp
Drive Package With Motor Included No

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Canarm
MFR # AX14-4
Zoro # G6849211
UPC #
062345205694
Country of Origin Canada
Category Exhaust and Supply Fan Accessories

Dimensions

Blade Dia.	14 in
Dimension A (In.)	18 3/4 in
Dimension C (In.)	5 in
Width (In.)	18 3/4 in
Outside Dia. (In.)	18 3/4 in
Shaft Dia. (In.)	1/2 in
Venturi Clearance Dia. (In.)	1/8 in
Venturi Depth (In.)	5/8 in
Flange Width (In.)	1 1/2 in
Dimension B (In.)	15 3/4 in
Max. Depth (In.)	18 3/4 in
Height (In.)	18 3/4 in
Dimension D (In.)	13 3/4 in
Venturi Diameter	1/8 in
Overall Height	18 3/4 in
Manufacturer Warranty Length	1 yr
For Cut-Out Width	15 in
Overall Depth	18 3/4 in
Overall Width	18 3/4 in
Blade Diameter	14 in
For Cut-Out Height	15 in
Overall Diameter	18 3/4 in
Shaft Diameter	1/2 in

Details

Exhaust/Supply Fan Item	Exhaust Fan
Type	Explosion Proof
Fan Voltage	115/208-230V AC
Exhaust/Supply Fan Motor HP	1/3 hp
Drive Package With Motor Included	No
CFM @ 0.000-In. SP	2,190 cfm
Sones @ 0.000-In. SP @ 5 Ft.	15
Full Load Amps	6.6/3.1-3.3
Propeller Material	Aluminum
Phase	1
Hz	60
Watts	250 W
CFM @ 0.125-In. SP	2,000 cfm
Motor Enclosure	Totally Enclosed Air Over
Agency Compliance	cETLus
Frame Material	Heavy Duty Aluminum
For Use With	General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Includes	Aluminum Blades, Aluminum Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutters, Wire Chrome Plated Guard
Number of Blades	3
Item	Shutter Mounted Hazardous Location Exhaust Fan
Drive Package Included	No
Max. Ambient Temp. (F)	104 Degrees F
Mounting Position	Horizontal
Motor RPM	1,725 RPM
CFM @ 0.250-In. SP	1,950 cfm
Hazardous Location Class	Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Motor Type	Explosion Proof
Bearing Type	Ball
Frame Finish	Powder Coated
Motor Insulation	Class B
Motor Enclosure Design	Totally Enclosed Air-Over (TEAO)
Guard Type	Intake
Number of Fans	1
Exhaust Airflow @ 0.250 in SP	1,950 cfm
Electrical Connection	Hardwired
Square Opening Required	10-1/2 to 20 in
Control Type	Rotary Dial
Full Load Current	6.6 A
Drive Type	Direct Drive
Noise Level @ 0.000 in SP @ 5 ft	15 sones
Mounting Orientation	Horizontal
Guard Finish	Chrome
Method of Construction	Stamped
Housing Material	Aluminum
Maximum Ambient Operating Temperature	104 Degrees F
Speed Controllable	No
Nominal Voltage	115/208-230V AC
Noise Level @ 0.100 in SP @ 5 ft	15 sones
For Maximum Wall Thickness	5 in
Wattage	250 W
Ventilation Type	Exhaust
Number of Speeds	1
Nameplate Voltage	115/208-230V AC
Vent Design	Ductless
Housing Finish	Aluminum
For Minimum Wall Thickness	5 in
Supply Airflow @ 0.000 in SP	2,190 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft	Greater than 9.0 sones
Maximum Airflow	2,190 cfm
Includes Motor	No
Frequency	60 Hz
Includes Dehumidistat	No
Fan Style	Shutter-Mounted
Motor Horsepower	1/3 hp
Maximum Exhaust Airflow @ 0.000 in SP	2001 to 4000 cfm
Assembled	Assembled
Discharge Direction	Horizontal
Guard Material	Steel
Exhaust Airflow @ 0.100 in SP	2,080 cfm
Exhaust Airflow @ 0.125 in SP	2,000 cfm
Includes Grill	No
Exhaust Airflow @ 0.000 in SP	2,190 cfm
Blade Material	Aluminum
Maximum Noise Level	15 sones
Motor Speed	1,725 RPM
Speed Control	No
Voltage	115/208-230

Description

Shutter Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 14 in, Blade Material Aluminum, Control Type Rotary Dial, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 2,190 cfm, For Cut-Out Height 15 in, For Cut-Out Width 15 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Aluminum, Guard Finish Chrome, Guard Material Steel, Guard Type Intake
