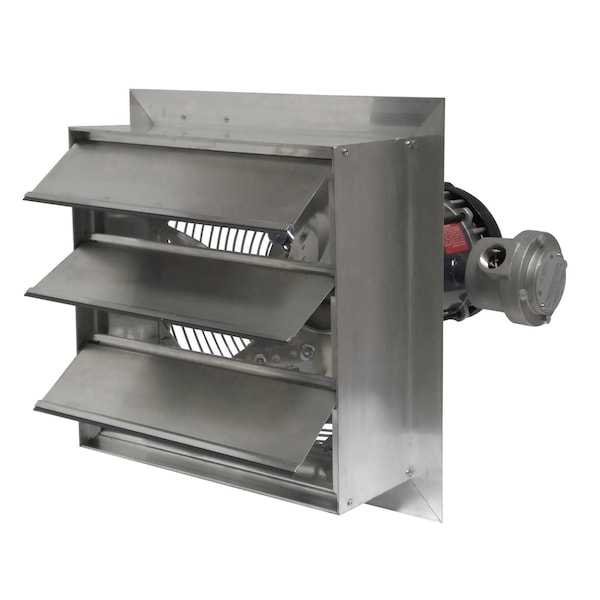

Exhaust Fan, Hazardous Location, 12 In

Mfr # AX12-4
Zoro # G7223912

$1,113.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Drive Package With Motor Included No
Blade Dia. 12 in
Hz 60
CFM @ 0.250-In. SP 1,450 cfm
Venturi Clearance Dia. (In.) 1/8 in

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Canarm
MFR # AX12-4
Zoro # G7223912
UPC #
062345205519
Country of Origin Canada
Category Exhaust and Supply Fan Accessories

Dimensions

Blade Dia.	12 in
Venturi Clearance Dia. (In.)	1/8 in
Venturi Depth (In.)	5/8 in
Outside Dia. (In.)	16 3/4 in
Flange Width (In.)	1 1/2 in
Height (In.)	16 3/4 in
Dimension B (In.)	13 3/4 in
Dimension C (In.)	5 in
Width (In.)	16 3/4 in
Max. Depth (In.)	18 3/4 in
Dimension D (In.)	13 3/4 in
Shaft Dia. (In.)	1/2 in
Dimension A (In.)	16 3/4 in
Venturi Depth	5/8 in
Flange Width	1 1/2 in
Overall Depth	18 3/4 in
Venturi Diameter	1/8 in
Blade Diameter	12 in
Overall Diameter	16 3/4 in
Overall Height	16 3/4 in
Shaft Diameter	1/2 in
Manufacturer Warranty Length	1 yr
For Cut-Out Width	13 in
Overall Width	16 3/4 in
For Cut-Out Height	13 in

Details

Item	Shutter Mounted Hazardous Location Exhaust Fan
Drive Package With Motor Included	No
Hz	60
CFM @ 0.250-In. SP	1,450 cfm
Motor Type	Explosion Proof
Hazardous Location Class	Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Watts	250 W
Type	Explosion Proof
Sones @ 0.000-In. SP @ 5 Ft.	12
Frame Material	Aluminum
Phase	1
Exhaust/Supply Fan Motor HP	1/3 hp
Mounting Position	Horizontal
CFM @ 0.000-In. SP	1,670 cfm
Bearing Type	Ball
Motor Enclosure	Totally Enclosed Air Over
Full Load Amps	6.6/3.1-3.3
Max. Ambient Temp. (F)	104 Degrees F
Fan Voltage	115/208-230V AC
Exhaust/Supply Fan Item	Exhaust Fan
Motor Insulation	Class B
Frame Finish	Powder Coated
Number of Blades	3
Propeller Material	Aluminum
Drive Package Included	No
For Use With	General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
Includes	Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutter, Wire Guard
Motor RPM	1,725 RPM
CFM @ 0.125-In. SP	1,575 cfm
Agency Compliance	cETLus
Standards	OSHA Compliant
Method of Construction	Stamped
Exhaust Airflow @ 0.125 in SP	1,575 cfm
Exhaust Airflow @ 0.100 in SP	1,600 cfm
Guard Finish	Chrome
Exhaust Airflow @ 0.250 in SP	1,450 cfm
Blade Material	Aluminum
Guard Type	Intake
Maximum Exhaust Airflow @ 0.000 in SP	0 to 2000 cfm
Maximum Ambient Operating Temperature	104 Degrees F
For Maximum Wall Thickness	5 in
Electrical Connection	Hardwired
Square Opening Required	10-1/2 to 20 in
Includes Grill	No
Full Load Current	6.6 A
Assembled	Assembled
Noise Level @ 0.000 in SP @ 5 ft	12 sones
Mounting Orientation	Horizontal
Exhaust Airflow @ 0.000 in SP	1,670 cfm
Supply Airflow @ 0.000 in SP	1,670 cfm
Includes Motor	No
For Minimum Wall Thickness	5 in
Discharge Direction	Horizontal
Number of Fans	1
Drive Type	Direct Drive
Number of Speeds	1
Maximum Noise Level	12 sones
Vent Design	Ductless
Nameplate Voltage	115/208-230V AC
Motor Horsepower	1/3 hp
Speed Controllable	No
Frequency	60 Hz
Nominal Voltage	115/208-230V AC
Fan Style	Shutter-Mounted
Wattage	250 W
Control Type	Rotary Dial
Maximum Noise Level @ 0.000 in SP @ 5 ft	Greater than 9.0 sones
Maximum Airflow	1,670 cfm
Housing Finish	Aluminum
Includes Dehumidistat	No
Guard Material	Steel
Motor Speed	1,725 RPM
Motor Enclosure Design	Totally Enclosed Air-Over (TEAO)
Housing Material	Aluminum
Noise Level @ 0.100 in SP @ 5 ft	11.3 sones
Ventilation Type	Exhaust
Voltage	115/208-230
Speed Control	No

Description

Shutter Mounted Hazardous Location Exhaust Fan, Assembled Assembled, Blade Diameter 12 in, Blade Material Aluminum, Control Type Rotary Dial, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 1,670 cfm, For Cut-Out Height 13 in, For Cut-Out Width 13 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Aluminum, Guard Finish Chrome, Guard Material Steel, Guard Type Intake
