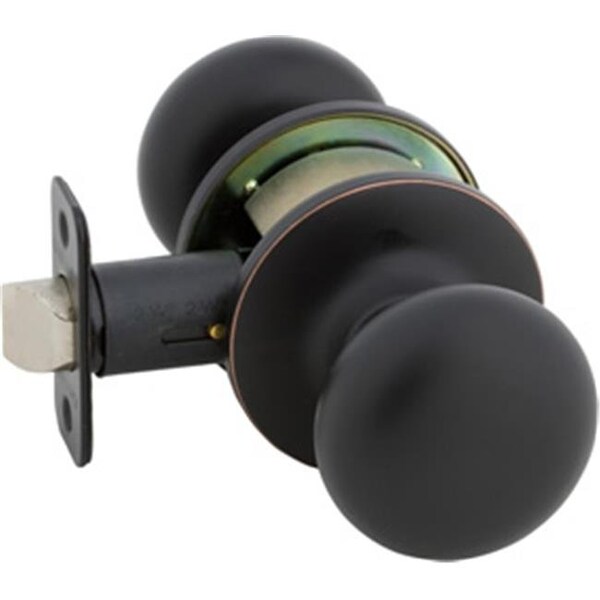

Callan2 G2KS1017 Saxon Series Grade 2 Passage Knob Set; Edged Bronze

Passage style knobs and levers are used to provide transition from one room to another. Both sides of the hardware are always free and have no locking mechanisms. Perfect for hallways, closets, guest rooms, or anywhere that doesn't require a lock. Callan 2's Saxon Series knobs carry an understated elegance that gives way to a design both functional and beautiful. Designed for ease of use as well as high security.

• Function - Passage
• Combination Screws that Suit both Wood or Metal Door Mounting
• Heavy Duty All Metal Construction
• Protective Sleeve
• Interlocking Chassis
• Patented GR2 Adjustable Latch
• Reinforced Spring Assembly
• Finish - Edged Bronze
• Item Weight - 1.3 lbs.

• Door Prep
  • Cross bore - 2.12 in.
  • Edge bore - 1 in.
  • Latch face: 1 x 2.25 in.
• Backset - Fits - 2.37 and 2.75 in.
• Door Thickness - 1.37 to 1.75 in. door standard
• Cylinder - SC1 5-pin standard; KW1 5-pin optional, Entries packed KA5
• Latches
  • Passage: 2.37 & 2.75 in. adjustable
  • Faceplate: 1 x 2.25 in. Rod. & Sq. corner
  • Bolt: 0.5 in. throw
• Strikes - 1.75 x 2.25 in. full lip Rod. & Sq. corner. Includes Reinforcement Plate.
• Wood Screws - Combination screws that suit both wood or metal door mounting. Includes 1.5 in. Security Screws.
• Grade 2 Features:
  • Protective collar.
  • Interlocking installation guides.
  • Reinforced spring assembly.
