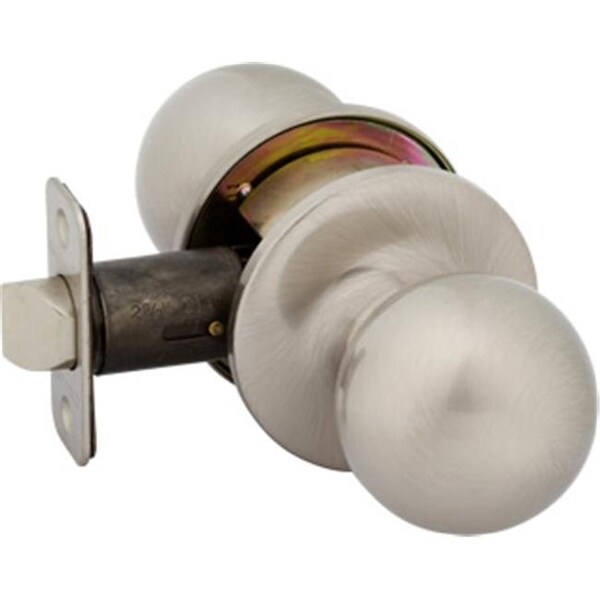

Callan2 G2KR1011 Fairfield Series Grade 2 Passage Knob Set; Satin Nickel

Passage style knobs and levers are used to provide transition from one room to another. Both sides of the hardware are always free and have no locking mechanisms. Perfect for hallways, closets, guest rooms, or anywhere that doesn't require a lock. Fairfield Series knobs are both practical and attractive. Designed with both ease of use and durability in mind.

• Function - Passage
• Combination Screws that Suit both Wood or Metal Door Mounting
• Works Well with Both Traditional and Functional Decor
• Finish - Satin Nickel
• Item Weight - 1.4 lbs.

• Door Prep
  • Cross bore - 2.12 in.
  • Edge bore - 1 in.
  • Latch face: 1 x 2.25 in.
• Backset Fits - 2.37 and 2.75 in.
• Door Thickness - 1.37 to 1.75 in. door standard
• Cylinder - SC1 5-pin standard; KW1 5-pin optional, Entries packed KA5
• Latches
  • Passage: 2.37 & 2.75 in. adjustable
  • Faceplate: 1 x 2.25 in. Rod. & Sq. corner
  • Bolt: 0.5 in. throw
• Strikes - 1.75 x 2.25 in. full lip Rod. & Sq. corner. Includes Reinforcement Plate.
• Wood Screws - Combination screws that suit both wood or metal door mounting. Includes 1.5 in. Security Screws.
• Grade 2 Features:
  • Protective collar.
  • Interlocking installation guides.
  • Reinforced spring assembly.
