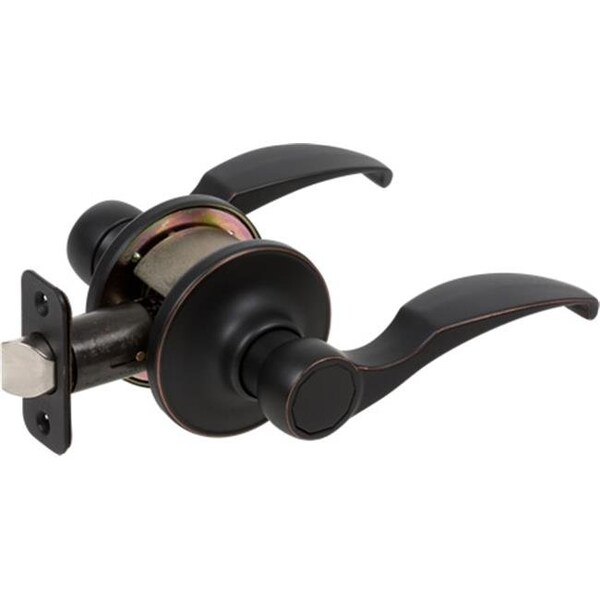

Callan2 G2KI5017R Kendall Series Grade 2 Passage Lever Set; Edged Brass

Passage style knobs and levers are used to provide transition from one room to another. Both sides of the hardware are always free and have no locking mechanisms. Perfect for hallways, closets, guest rooms, or anywhere that doesn't require a lock. Callan 2's Kingston Series is a stunning example of modern design meeting classic, organic overtones. Designed for ease of use as well as high security.

• Function - Passage
• Combination Screws that Suit both Wood or Metal Door Mounting
• Heavy Duty All Metal Construction
• Protective Sleeve
• Interlocking Chassis
• Patented GR2 Adjustable Latch
• Reinforced Spring Assembly
• Reversible Handing
• Finish - Edged Brass
• Dimension - 4.12 x 1.94 x 2.62 in.
• Projection from the door - 2.5
• Item Weight - 0.8 lbs.

• Door Prep
  • Cross bore - 2.12 in.
  • Edge bore - 1 in.
  • Latch face: 1 x 2.25 in.
• Backset Fits - 2.37 and 2.75 in.
• Door Thickness - 1.37 to 1.75 in. door standard
• Cylinder SC1 5-pin standard; KW1 5-pin optional, Entries packed KA5
• Latches
  • Passage: 2.37 & 2.75 in. adjustable
  • Faceplate: 1 x 2.25 in. Rod. & Sq. corner
  • Bolt: 0.5 in. throw
• Strikes - 1.75 x 2.25 in. full lip Rod. & Sq. corner., Includes Reinforcement Plate.
• Wood Screws - Combination screws that suit both wood or metal door mounting., Includes 1.5 in. Security Screws.
• Grade 2 Features:
  • Protective collar.
  • Interlocking installation guides.
  • Reinforced spring assembly.
