  13. Concrete Pipe Pick, 3 Tons
Shop All Application Specific Lifters
Caldwell

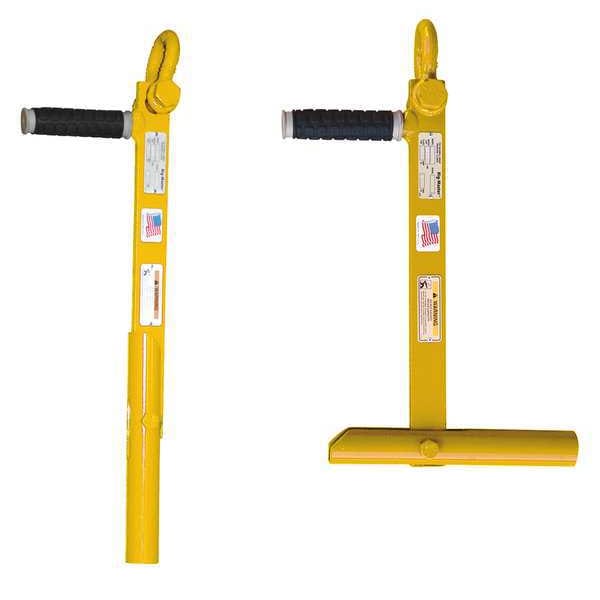

Concrete Pipe Pick, 3 Tons

original price: $1,079.10
6% off
new price: $1,010.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Capacity 6,000 lb
  • Headroom 28 1/2 in
  • Pipe Lifting Hole Diameter 2 1/2 in
  • Bail Opening Height 1 3/8 in
  • Min. Pipe Inside Diameter 14 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Pipe Lifting Hole Diameter 2 1/2 in
Bail Opening Height 1 3/8 in
Min. Pipe Inside Diameter 14 in
Bail Opening Width 2 in
Overall Width 2 in
Width 2 in
Bail Inside Length 2 1/8 in
Bail Height 3/4 in
Arm Height 1 3/4 in
Bail Inside Width 1 7/8 in
Arm Length 12 in
Lifting Hole Diameter 2 1/2 in
Minimum Pipe Diameter 14 in

Details

Item Pipe Pick
Capacity 6,000 lb
Headroom 28 1/2 in
Standards ASME
Material Above the Bail Opening 13/16 in
Bail Thickness 3/4 in
Minimum Headroom 20 in
Maximum Load Capacity 6,000 lb
Maximum Headroom 27 5/8 in

Description

Pipe Pick, Maximum Load Capacity 6,000 lb, Minimum Pipe Diameter 14 in, Lifting Hole Diameter 2 1/2 in, Minimum Headroom 20 in, Maximum Headroom 27 5/8 in, Arm Height 1 3/4 in, Arm Length 12 in, Bail Inside Length 2 1/8 in, Bail Inside Width 1 7/8 in, Bail Thickness 3/4 in, Overall Width 2 in, Bail Height 3/4 in, Standards ASME
