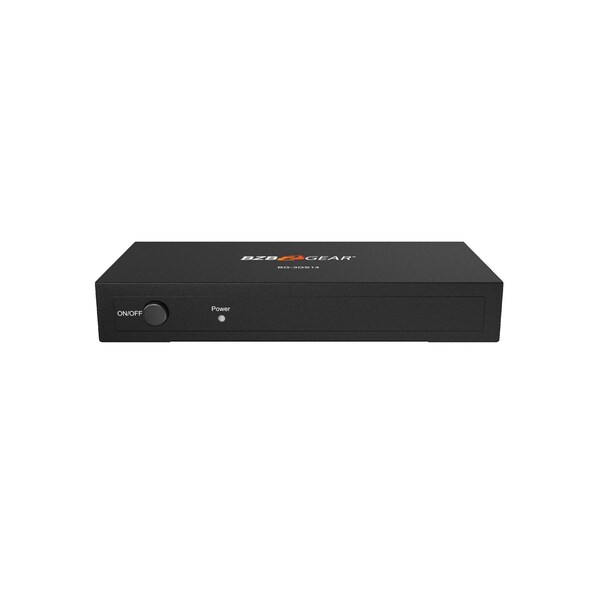

1080P 3G-SDI 1X4 SPLITTER/Distribution Amplifier
Mfr # BG-3GS14
Zoro # G407171904
product price: $59.00
/ea
$59.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Bzbgear
- MFR # BG-3GS14
- Zoro # G407171904
- UPC # 850023208132
- Country of Origin China
- Category Video Splitters, Connectors, and Adapters
Description
The BG-3GS14 is a 1x4 3G-SDI splitter that splits one SDI input to four SDI outputs simultaneously. With a signal relocking feature it can also extend a video signal for long distance transmission. This reliable and powerful tool provides consistent connections in a variety of different scenarios, like adding a multiple outputs for monitoring a video feed on different displays, splitting the signal and cascading to multiple displays, or extending an SDI signal. The BG-3GS14 supports a maximum resolution of 1080p@60Hz with 3G-SDI signal. The device also supports a wide range of data rates from 270 Mbps at the low end to a maximum bandwidth of 2.97 Gbps. There is also support for multiple deep color settings such as 8 bit, 10 bit, and 12 bit.This splitter can also maintain SD signals for up to 200m 656ft, HD signals 120m 393ft, and 3G up to 80m 262ft. Multiple video resolutions are also available with this unit, including SD 480i, 576i and 625i, HD 720p@24/25/30/50/60, 1080i@50/60, 1080p@24/25/30, and 3G 1080p@50/60. It further supports multiple color spaces, including RGB or YCbCr 4:4:4 sampled , YCbCr 4:2:2 or 4:2:0 sampled.Quality SDI connectors provide reliability due to their interlocking design. This prevents SDI cables from being dislodged from the unit via accidental forces or from loose connections.
