Shop All Split Bolt Connectors
Burndy

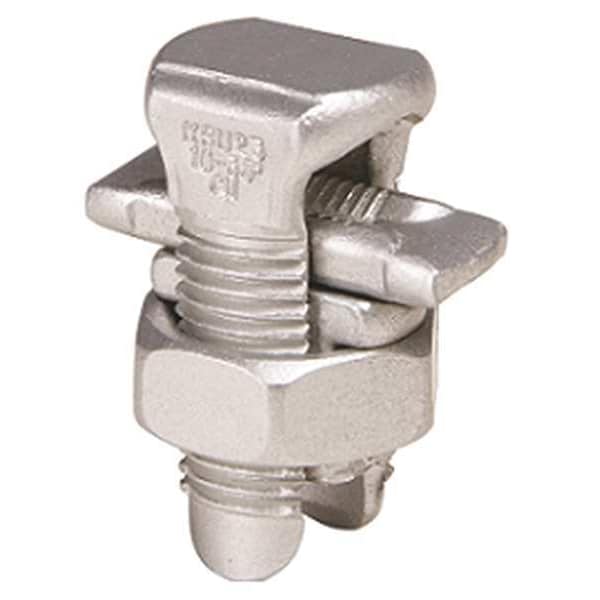

Split-Bolt Connector, 1 str to 3/0 str
Mfr # KSU27
Zoro # G4660993
product price: $33.99
/ea
$33.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Connects Copper to Aluminum Wire
- Wire Range w/Equal Main and Tap (AWG) 1 str to 3/0 str
- Min. Tap Conductor w/1 Max. Main (AWG) 8 sol
- Material Copper Alloy
- Pressure Bar Material Copper
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Burndy
- MFR # KSU27
- Zoro # G4660993
- UPC # 781810557952
- Country of Origin United States
- Category Split Bolt Connectors
Dimensions
| Hex Nut Size | 1.38 in |
| For Maximum Run Wire Size | 3/0 AWG |
| For Maximum Tap Wire Size | 3/0 AWG |
| Overall Width | 1.12 in |
| For Minimum Run Wire Size | 1 AWG |
| Wire Size Range (Run) | 1 AWG - 3/0 AWG |
| For Minimum Tap Wire Size | 8 AWG |
| Overall Length | 2.36 in |
| Width | 1.12 in |
| Conductor - Galvanized Steel Str Size Range | 1/2 (19) in |
| Dimension - L Length Overall mm | 59 mm |
| Dimension - Width inch | 1.12 in |
| Dimension - Length Overall inch | 2.36 |
| Dimension - Width mm | 28 mm |
| Dimension - Cross Flats inch | 1.38 in |
| Conductor - Galvanized Steel Str Size | 1/2 (19) in |
Description
Split-Bolt Connector, Body Finish Tin Plated, Body Material Copper, For Conductor Material Aluminum, Copper, Steel, For Minimum Run Wire Size 1 AWG, For Maximum Run Wire Size 3/0 AWG, For Minimum Tap Wire Size 8 AWG, For Maximum Tap Wire Size 3/0 AWG, Head Style Square Head, Hex Nut Size 1.38 in, Maximum Voltage 35,000 V, Torque 500 in-lb, Overall Length 2.36 in, Overall Width 1.12 in, RoHS Compliant Yes, Standards CSA Certified, UL Listed 486A Copper Only, Connects Copper to Aluminum Wire
