Burndy

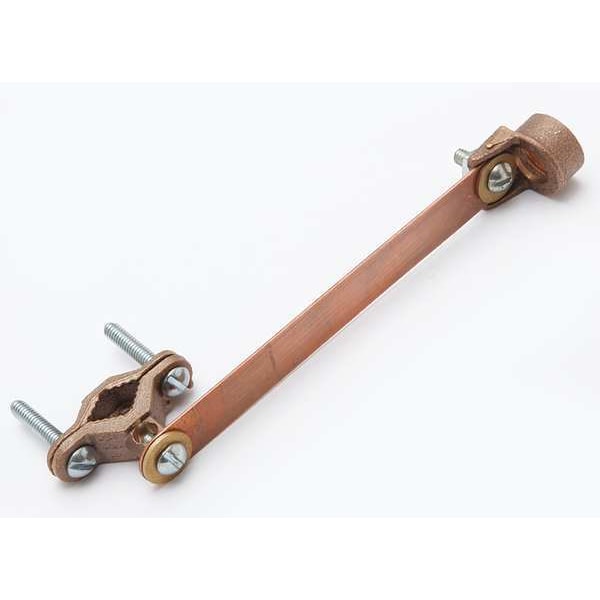

Pipe Ground Clamp, 8.5In

product price: $10.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type - Grounding Connector Mechanical
  • Type COMMERCIAL
  • Wire Size - Grounding I/2 in Hub
  • Material Bronze
  • Grounding Wires Connected To 1/2 in to 1 in Pipe
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wire Size - Grounding I/2 in Hub
Conductor Size 6 AWG
Rod Dia. 1/2" to 1" Pipe
Grounding Wire Size 1/2 in Hub, 8 to 4 AWG SOL, 8 to 4 AWG STR
Overall Height 1 3/4 in
Overall Width 1 1/16 in
Overall Length 8 1/2 in
For Maximum Pipe Size 1 in
For Minimum Pipe Size 1/2 in
For Minimum Ground Conductor Wire Size 8 AWG
For Maximum Ground Conductor Wire Size 6 AWG SOL
Dimension - L Length Overall mm 216 mm
Conductor - Copper Str Size Range 8 STR. - 4 STR.
Dimension - Pad Width inch 1.06 in
Conductor - Copper Solid Size 8 SOL. - 4 SOL.
Conductor - Copper Solid Size Range 8 SOL. - 4 SOL.
Dimension - Width inch 1.06 in
Conductor - Copper Str Size 8 STR. - 4 STR.
Dimension - Length Overall inch 8.50 in
Dimension - Height inch 1.75 in
Dimension - Width mm 27 mm
Conductor - Pipe EMT Size 1/2 in;3/4 in;1 in
Conductor - Pipe EMT Size Range 1/2 in-1 in
Dimension - D inch 6.12 in

Description

Grounding Connector, Grounding Wire Size 1/2 in Hub, 8 to 4 AWG SOL, 8 to 4 AWG STR, Material Bronze, Number of Wires - Grounding 1, Description/Special Features Strap Helps Protect Conduit System From Water System Vibrations, For Maximum Ground Conductor Wire Size 6 AWG SOL, For Minimum Ground Conductor Wire Size 8 AWG, For Use With Copper Conductor, Hub, Water Pipe, Grounding Wires Connected To 1/2 in to 1 in Pipe, Standards UL Listed, UL467, Type - Grounding Connector Mechanical
