Burndy

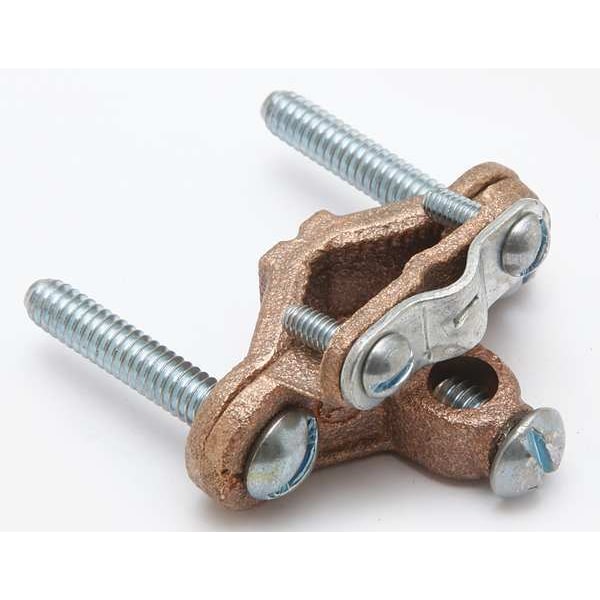

Pipe Ground Clamp, 10AWG, 2.34In
Mfr # C6
Zoro # G4681932
product price: $6.69
/ea
$6.69
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type - Grounding Connector Mechanical
- Type COMMERCIAL
- Wire Size - Grounding 10 to 2 AWG
- Material Bronze
- Grounding Wires Connected To 1/2 in to 1 in Pipe
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Burndy
- MFR # C6
- Zoro # G4681932
- UPC # 781810142394
- Country of Origin India
- Category Ground Rods & Clamps
Dimensions
Wire Size - Grounding | 10 to 2 AWG |
Rod Dia. | 1/2" to 1" Pipe |
Conductor Size | 2 AWG to 10 AWG |
Grounding Wire Size | 10 AWG SOL to 2 AWG STR |
Overall Height | 1 19/32 in |
For Minimum Ground Conductor Wire Size | 10 AWG SOL |
Overall Length | 2 11/32 in |
Overall Width | 1 1/16 in |
For Minimum Pipe Size | 3/8 in |
For Maximum Ground Conductor Wire Size | 2 AWG STR |
For Maximum Pipe Size | 1 in |
Dimension - Length Overall inch | 2.34 in |
Dimension - Height inch | 1.60 in |
Conductor - Copper Solid Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
Conductor - Copper Str Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
Conductor - Copper Str Size Range | 10 AWG-2 AWG |
Conductor - Pipe EMT Size Range | 3/8 in-1 in |
Dimension - Pad Width inch | 0.63 in |
Dimension - L Length Overall mm | 59 mm |
Dimension - Width inch | 1.06 in |
Conductor - Pipe EMT Size | 3/8 in;1/2 in;3/4 in;1 in |
Dimension - Width mm | 27 mm |
Conductor - Copper Solid Size Range | 8 AWG-2 AWG |
Conductor - Armored Cable Size | Yes |
Description
Grounding Connector, Grounding Wire Size 10 AWG SOL to 2 AWG STR, Material Bronze, Number of Wires - Grounding 1, Description/Special Features Bare Armored or Unarmored Cable, For Maximum Ground Conductor Wire Size 2 AWG STR, For Minimum Ground Conductor Wire Size 10 AWG SOL, For Use With Copper Conductor, Water Pipes, Grounding Wires Connected To 1/2 in to 1 in Pipe, Standards UL Listed, UL467, Type - Grounding Connector Mechanical, Accessory Type Ground Clamp, For Maximum Pipe Size 1 in
