  10. /
  11. Insulated Multitap Connector, 2.75 In. L
Shop All Mechanical Lugs
Burndy

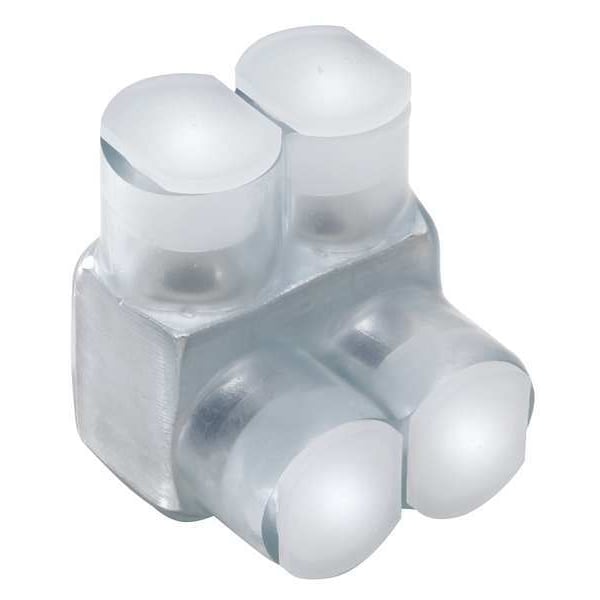

Insulated Multitap Connector, 2.75 In. L

product price: $63.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Single-Sided Entry
  • No. of Ports 2
  • Min. Conductor Size 4 AWG
  • Max. Conductor Size 600 kcmil
  • Stud Size 1/8 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Min. Conductor Size 4 AWG
Max. Conductor Size 600 kcmil
Stud Size 1/8 in
Length 2.75 in
Width 2.72 in
Length (Straight Wireway) 2.75 in
Strip Length 1 1/8 in
Wire Size Range 4 AWG - 600 kcmil
Overall Length 2.72 in
Overall Width 2.38 in
For Stranded Copper Wire Size - Maximum 600 kcmil
For Stranded Copper Wire Size - Minimum 4 AWG
Hex Size 3/8 in
Conductor Size 4 AWG-600 KCMIL
Conductor - Copper Str Size Range 4 AWG-600 kcmil
Dimension - Width mm 60 mm
Conductor - AL Str Size Range 4 AWG-600 kcmil
Dimension - L Length Overall mm 69 mm
Dimension - Width fraction 2-19/50 in
Dimension - Width inch 2.38 in
Dimension - Height inch 2.75 in
Dimension - Length Overall inch 2.72 in

Description

Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, Head Style Hex, Hex Size 3/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
