Shop All Mechanical Lugs
Burndy

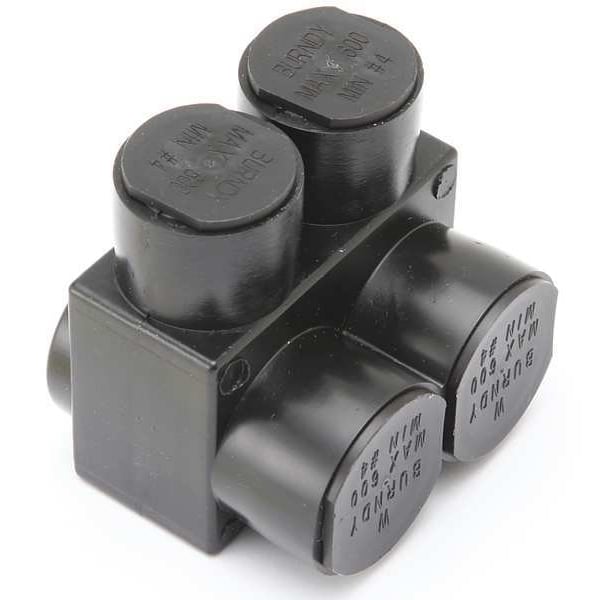

Insulated Multitap Connector, 2.75 In. L
Mfr # 1PL6002
Zoro # G4659137
original price:
$93.85
29% off
new price: $66.49
/ea
$66.49
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Connector Type Single-Sided Entry
- No. of Ports 2
- Min. Conductor Size 4 AWG
- Max. Conductor Size 600 kcmil
- Stud Size 1/8 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Burndy
- MFR # 1PL6002
- Zoro # G4659137
- UPC # 781810555231
- Country of Origin United States
- Category Mechanical Lugs
Dimensions
Min. Conductor Size | 4 AWG |
Max. Conductor Size | 600 kcmil |
Stud Size | 1/8 in |
Length | 2.75 in |
Width | 2.72 in |
Length (Straight Wireway) | 2.75 in |
For Stranded Copper Wire Size - Minimum | 4 AWG |
Strip Length | 1 1/8 in |
Hex Size | 3/8 in |
Overall Length | 2.72 in |
For Stranded Copper Wire Size - Maximum | 600 kcmil |
Wire Size Range | 4 AWG - 600 kcmil |
Overall Width | 2.38 in |
Conductor Size | 4 AWG-600 KCMIL |
Dimension - Height fraction | 2.75 in |
Dimension - L Length Overall mm | 69 mm |
Dimension - Width inch | 2.38 in |
Conductor - Copper Str Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil |
Conductor - AL Str Size Range | 4 AWG-600 kcmil |
Conductor - Copper Str Size Range | 4 AWG-600 kcmil |
Conductor - AL Str Size | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil |
Dimension - Height inch | 2.75 in |
Dimension - Width mm | 60 mm |
Dimension - Length Overall inch | 2.72 in |
Dimension - Width fraction | 2-19/50 in |
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, Head Style Hex, Hex Size 3/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
