Burndy

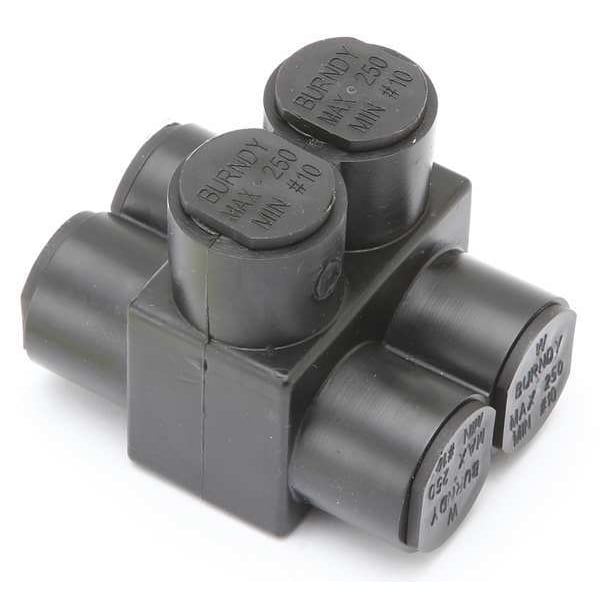

Insulated Multitap Connector, 2.64 In. L
Mfr # 1PLD2502
Zoro # G4658875
product price: $32.45
/ea
$32.45
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Connector Type Double-Sided Entry
- No. of Ports 2
- Min. Conductor Size 10 AWG
- Max. Conductor Size 250 kcmil
- Insulation Material Plastisol
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Burndy
- MFR # 1PLD2502
- Zoro # G4658875
- UPC # 781810555187
- Country of Origin United States
- Category Mechanical Lugs
Dimensions
Min. Conductor Size | 10 AWG |
Max. Conductor Size | 250 kcmil |
Stud Size | 3/16 in |
Length | 2.64 in |
Width | 2.13 in |
Length (Straight Wireway) | 2.64 in |
Wire Size Range | 10 AWG - 250 kcmil |
For Stranded Copper Wire Size - Minimum | 10 AWG |
For Stranded Copper Wire Size - Maximum | 250 kcmil |
Strip Length | 1 in |
Overall Width | 2.64 in |
Overall Length | 2.03 in |
Hex Size | 5/16 in |
Conductor Size | 10 AWG-250 KCMIL |
Conductor - AL Str Size Range | 10 AWG-250 kcmil |
Dimension - Width fraction | 2-16/25 in |
Dimension - Height inch | 2.13 in |
Conductor - Copper Str Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
Dimension - Length Overall inch | 2.03 in |
Conductor - Copper Str Size Range | 10 AWG-250 kcmil |
Dimension - Screw Size inch | 45054 |
Conductor - AL Str Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
Dimension - Width inch | 2.64 in |
Dimension - Height fraction | 2.125 in |
Dimension - Width mm | 67 mm |
Dimension - L Length Overall mm | 52 mm |
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
