Burndy

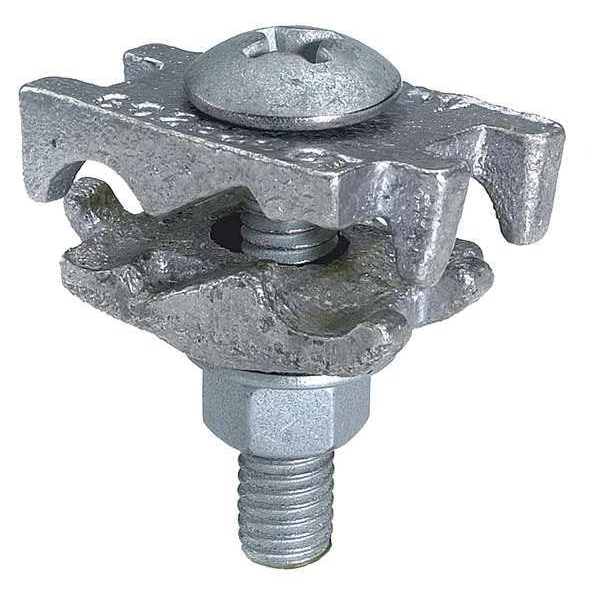

Cabletray Ground Clamp, 2/0AWG, 2.2In
Mfr # GC2929CT
Zoro # G4664983
product price: $52.99
/ea
$52.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type COMMERCIAL
- Type - Grounding Connector Mechanical
- Wire Size - Grounding 2/0 AWG to 250 kcmil
- Material Copper
- Standards UL Listed Direct Burial, UL467
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Burndy
- MFR # GC2929CT
- Zoro # G4664983
- UPC # 781810220580
- Country of Origin Mexico
- Category Ground Rods & Clamps
Dimensions
| Wire Size - Grounding | 2/0 AWG to 250 kcmil |
| Conductor Size | 250 kcmil to 2/0 |
| Grounding Wire Size | 2/0 AWG to 250 kcmil STR, 4/0 AWG SOL |
| Overall Width | 1 31/32 in |
| For Minimum Ground Conductor Wire Size | 2/0 AWG SOL |
| Overall Height | 2 3/16 in |
| Overall Length | 1 1/8 in |
| For Maximum Ground Conductor Wire Size | 250 kcmil |
| Dimension - Width inch | 1.98 in |
| Conductor - Copper Solid Size Range | 4/0 AWG |
| Dimension - B Length inch | 1.12 in |
| Conductor - Copper Str Size Range | 2/0 AWG-250 kcmil |
| Dimension - Width mm | 50 mm |
| Conductor - AL Str Size | 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Solid Size | 4/0 AWG |
| Dimension - Height inch | 2.20 in |
| Conductor - AL Str Size Range | 2/0 AWG-250 kcmil |
| Conductor - Copper Str Size | 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Dimension - Cross Flats inch | 0.56 in |
Description
Cable Tray Grounding Connector, Grounding Wire Size 2/0 AWG to 250 kcmil STR, 4/0 AWG SOL, Material Copper, Number of Wires - Grounding 2, Description/Special Features Direct Burial, Ribbed Neck Bolt, For Maximum Ground Conductor Wire Size 250 kcmil, For Minimum Ground Conductor Wire Size 2/0 AWG SOL, For Use With Aluminum Conductor, Cable Tray, Copper Conductors, Flat Bar, Grounding Wires Connected To Cable Tray, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical
