Shop All Hazardous Location Plugs
Brad Harrison
MIC 5P M/M-ATTCH STR PG7 SCREW
Mfr # 8A5006-31
Zoro # G0405868
product price: $45.15
/ea
Sold in multiples of 3 for $135.45
$135.45
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material - Coupling Nut Nickel-plated Brass
- Orientation Straight
- Voltage - Maximum 30V AC / 36V DC
- Material - Plating Mating Silver
- CSA LR6837
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Brad Harrison
- MFR # 8A5006-31
- Zoro # G0405868
- UPC # 78678875705
- Country of Origin Unknown
- Category Hazardous Location Plugs
Dimensions
Wire Size AWG | 18 |
Cable Diameter | 3.30-6.60mm (.130-.260") |
Details
Material - Coupling Nut | Nickel-plated Brass |
Orientation | Straight |
Voltage - Maximum | 30V AC / 36V DC |
Material - Plating Mating | Silver |
CSA | LR6837 |
Temperature Range - Operating | -25°C to +90°C |
Material - Connector Body | PA |
Gender | Male |
Current - Maximum per Contact | 4.0A |
Keyway | Single |
Coupling Type | External Thread |
Poles | 5 |
Type | Field Attachable Connector |
Product Name | Micro-Change (M12) |
IP Rating | IP67 |
Material - Contact | Brass |
Series | 120071 |
Diagnostics / LEDs | No |
Approvals | cCSAus certified |
Description

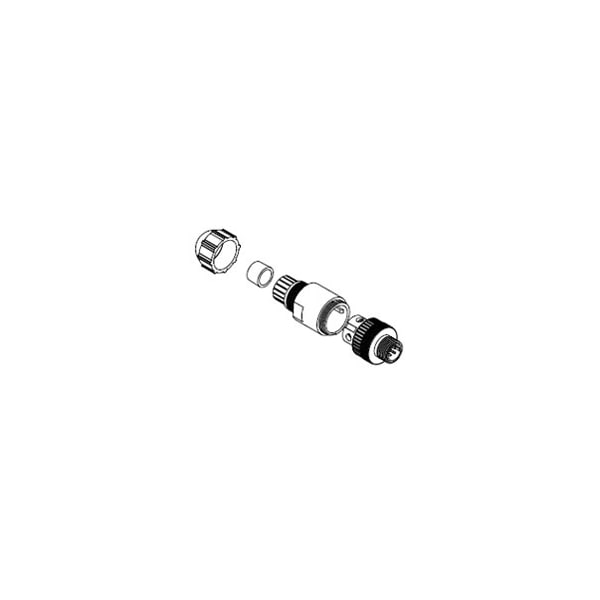

Micro-Change (M12) Single Keyway with PG7 Cable Fitting, Straight Male, 5 Poles, Cable Diameter 3.30-6.60mm
