Brad Harrison
MIC 5P F-ATTCH STR PG7 SCREW
Mfr # 8A5000-31
Zoro # G0405475
product price: $31.95
/ea
Sold in multiples of 3 for $95.85
$95.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Coupling Type Internal Thread
- Cable Diameter 3.30-6.60mm (.130-.260")
- CSA LR6837
- Wire Size AWG 18
- Gender Female
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Brad Harrison
- MFR # 8A5000-31
- Zoro # G0405475
- UPC # 78172553084
- Country of Origin Unknown
- Category Hazardous Location Plugs
Dimensions
Cable Diameter | 3.30-6.60mm (.130-.260") |
Wire Size AWG | 18 |
Details
Coupling Type | Internal Thread |
CSA | LR6837 |
Gender | Female |
Material - Connector Body | PA |
Material - Coupling Nut | Nickel-plated Brass |
Material - Plating Mating | Silver |
Temperature Range - Operating | -25°C to +90°C |
Voltage - Maximum | 30V AC / 36V DC |
Current - Maximum per Contact | 4.0A |
Keyway | Single |
Poles | 5 |
Orientation | Straight |
Series | 120071 |
IP Rating | IP67 |
Type | Field Attachable Connector |
Diagnostics / LEDs | No |
Material - Contact | Brass |
Approvals | cCSAus certified |
Product Name | Micro-Change (M12) |
Description

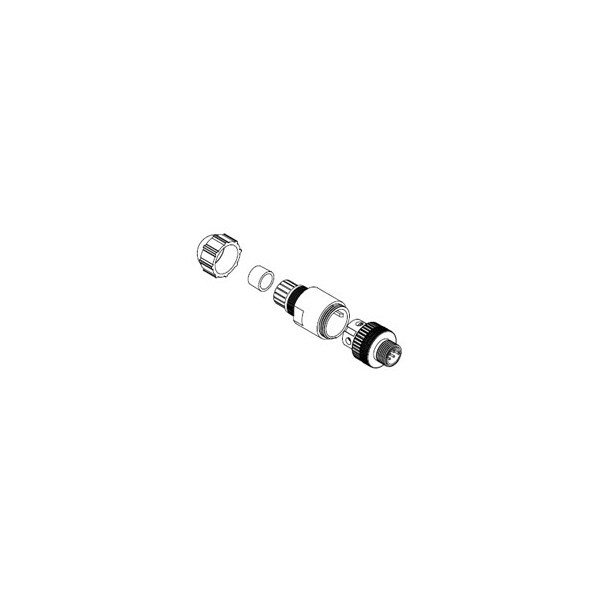

Micro-Change (M12) Single Keyway with PG7 Cable Fitting, Straight Female, 5 Poles, Cable Diameter 3.30-6.60mm
