Shop All Duplex Straight Blade Receptacles
Brad Harrison
MC 5P MR 2M DEVICENET TRUNK
Mfr # DN5100-M020
Zoro # G5623616
Sold in multiples of 2 for $93.58
$93.58
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Single Ended (pigtail)
- IP Rating IP67
- Length 2.0m
- Panel Mount Front
- Material - Component Gray Annodized Aluminum
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Brad Harrison
- MFR # DN5100-M020
- Zoro # G5623616
- UPC # 78678829667
- Country of Origin Unknown
- Category Duplex Straight Blade Receptacles
Dimensions
Length | 2.0m |
Wire Size (AWG) | 15, 18 |
Mounting Thread Size | 1/2" - 14 NPT |
Details
Type | Single Ended (pigtail) |
IP Rating | IP67 |
Panel Mount | Front |
Material - Component | Gray Annodized Aluminum |
Keyway | Single |
Wire/Cable Type | Thick Standard Cable |
Series | 130039 |
Orientation | Straight |
Product Name | DeviceNet Trunk,Mini-Change |
Current - Maximum per Contact | 4.0A |
Poles | 5 |
UL | E152210 |
Temperature Range - Operating | -20° to +80°C |
CSA | LR6837 |
NEMA Rating | NEMA 6 |
Coupling Type | External Thread |
Voltage - Maximum | 300V AC/DC |
Gender | Male |
Description

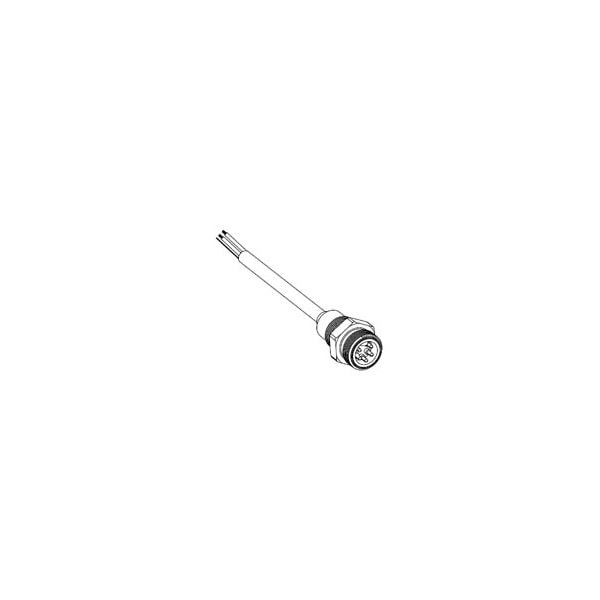

DeviceNet Trunk Receptacle, 5 Poles, 1/2" - 14 NPT, Male (Straight) to Leads, 2.0m (6.56 ft.) Length
