Shop All Duplex Straight Blade Receptacles
Brad Harrison

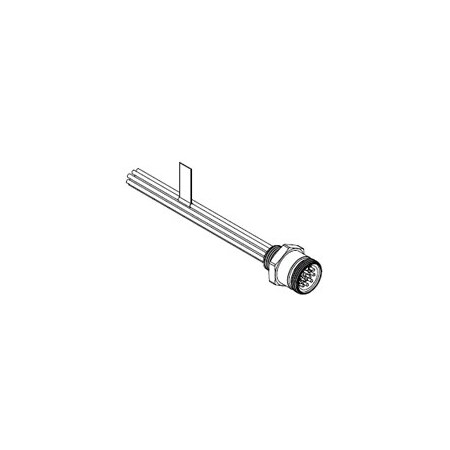

MC 12P MR 12" 16/1 PVC
Mfr # 3R2006A20A120
Zoro # G2023692
product price: $134.99
/ea
Free Shipping & Returns
$134.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Single Ended (pigtail)
- IP Rating IP67
- Length 0.305m
- Wire Size AWG 16
- Mounting Thread Size 1/2" - 14 NPT
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Brad Harrison
- MFR # 3R2006A20A120
- Zoro # G2023692
- UPC # 78678844203
- Country of Origin Unknown
- Category Duplex Straight Blade Receptacles
Dimensions
Length | 0.305m |
Wire Size AWG | 16 |
Mounting Thread Size | 1/2" - 14 NPT |
Details
Type | Single Ended (pigtail) |
IP Rating | IP67 |
Keyway | Single |
Current - Maximum per Contact | 5.0A |
CSA | LR6837 |
Orientation | Straight |
UL | E152210 |
Material - Component | Zinc Die-Cast with Black Epoxy |
Voltage - Maximum | 600V AC/DC |
Temperature Range - Operating | -20°C to +105°C |
Coupling Type | External Thread |
Gender | Male |
Poles | 12 |
Wire/Cable Type | UL 1015 |
Series | 130015 |
Panel Mount | Front |
Product Name | Mini-Change |
Description
Mini-Change C-Size Receptacle, 12 Poles, 1/2" - 14 NPT Threads, Male (Straight) to 16 AWG Leads, 0.305m (1.0 ft.) Length
