Shop All Speed Reducers
Boston Gear

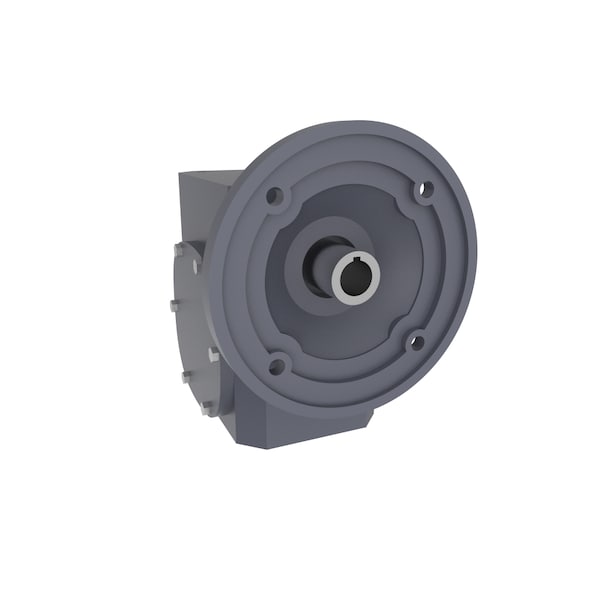

Speed Reducer 10 To 1
Mfr # F713-10-B5-J
Zoro # G0607909
product price: $811.99
/ea
Free Shipping & Returns
$811.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Nominal Ratio 10:1
- Input RPM 1750 RPM
- Bore Dia. 5/8"
- Overall Length 6.07"
- Standards AGMA Service Class I
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Boston Gear
- MFR # F713-10-B5-J
- Zoro # G0607909
- UPC # 781711518755
- Country of Origin United States
- Category Speed Reducers
Dimensions
Bore Dia. | 5/8" |
Overall Length | 6.07" |
Overall Height | 4.64 in |
Mount Hole Center-to-Center Width | 2 in |
Output Keyway Depth | 3/16 in |
Output Keyway Width | 3/16 in |
Output Shaft Diameter | 5/8 in |
Mount Hole Center-to-Center Length | 3.25 in |
Output Shaft Length | 2 in |
Description
Speed Reducer, Input Connection Type F-Standard Quill Flange, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 175 RPM, Motor Frame Designation 56C NEMA, Base to Center 2.94 in, Gear Ratio 10:1, Maximum Input Horsepower 0.86 hp, Maximum Output Torque 281 in-lb, Mounting Orientation Horizontal, AGMA Gear Class Class 1, Housing Material Cast Iron, Efficiency 91 Percent, Service Class Class I, Application Material Handling Conveyors, Bearing Type Tapered Roller, Color Gray
