Shop All Fuse Blocks & Holders
Blue Sea Systems
Open Fuse Block, CC UL Class, 30 to 100A Amp Range, 32V DC Volt Rating
Mfr # 5045
Zoro # G104842466
original price:
$34.25
5% off
new price: $32.45
/ea
$32.45
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- UL Class CC
- Series ST
- Amp Range 30 to 100A
- Voltage Rating 32V DC
- Connector Type Ring; Fork Terminal; Bus
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Blue Sea Systems
- MFR # 5045
- Zoro # G104842466
- Country of Origin Mexico
- Category Fuse Blocks & Holders
Dimensions
| Length | 2.13 in |
| Height | 5.17 in |
Details
| Item | Open Fuse Block |
| UL Class | CC |
| Series | ST |
| Amp Range | 30 to 100A |
| Voltage Rating | 32V DC |
| Connector Type | Ring; Fork Terminal; Bus |
| Mounting Style | Screw |
| Fuse Block Design | Covered |
| Max. Voltage | 32V DC |
| Max. Amps | 100A |
Description

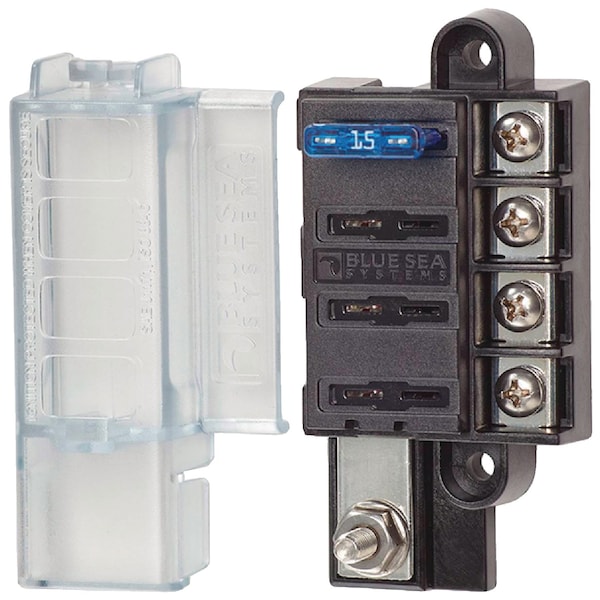

Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space. Compact common source fuse block; Accepts ATO and ATC fast acting blade fuses; Single side entry wiring; Ignition Protected - for use in a gasoline engine compartment; Insulating cover meets ABYC/USCG insulation requirements; Tin-plated copper buses and fuse clips; Accepts ring or snap fork type terminals; Small format standard and custom labels available; Fuses sold separately. Specifications: Voltage Max. Operating: 32V DC; Amperage Max. Operating: 30A per circuit; Amperage Max. Operating: 100A per block; Fuse Type: ATO or ATC Fuses; Screw Terminal: #8-32 Screws with captive star lock washer; Mounting: #8 Screw (M4)
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
