Blickle

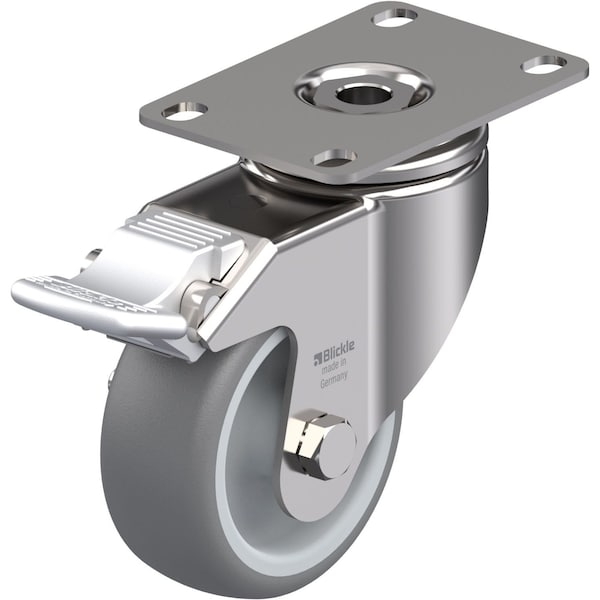

Swivel Plate Caster, TPR, 3-1/8", Brake

product price: $43.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel/Tread Material Thermoplastic Rubber
  • Load Rating 220 lb.
See all product information

Product Information

Dimensions

Overall Height 4-3/8 in
Wheel Dia. 3-1/8 in
Wheel Width 1-1/4 in
Stem Dia. No Stem
Mounting Bolt Dia. 5/16 in
Swivel Radius 3-1/8 in
Caster Plate Size 2-1/2 in x 3-5/8 in

Details

Caster Brake Included Yes
Caster Load Rating Range Medium Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 220 lb.
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Item Swivel Plate Caster With Brake
Caster Temp. Range -4 Degrees To 140 Degrees F
Frame Finish Stainless Steel
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Caster Raceway Double Ball
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Caster Product Group Swivel Caster With Brake
Core Color Gray
Tread Standard
Standards RoHS, ICWM, NSF
Caster Mounting Type Plate
Tread Color Gray
Application Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Includes Stop-Fix Total-Lock Brake
Caster Wheel Bearings Plain
Non-Marking Yes
Replacement Wheel Mfr. No. TPA 80/12G
System of Measurement Inch
Extended Lead No
Caster Plate Thickness 0.089 in
Caster Frame Material Stainless Steel
Caster Swivel Lock Type Total-Lock
Resistant To Very High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes 4
Series LKPXA Series
Caster Break Type Stop Fix Brake (Total Lock)
Wheel/Tread Hardness 85 Shore A
Tread Shape Standard
Load Capacity 220 lb
Wheel Core Material Polypropylene
Includes Thread Guards No
ESD Conductive No
Swivel Raceway Type Double Ball

Description

Swivel With Brake
