Black Box

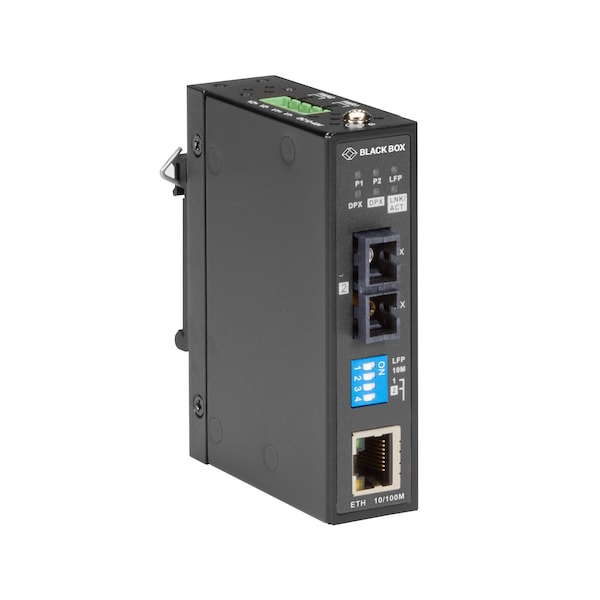

Lmc280 Series Fast Ethernet Industrial Media Converter - Single-Mode

product price: $380.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Standards IEC60068-2 Shock, Free Fall, Vibration; CE, FCC
  • Features Convert 10/100Base-T(X) to 100BaseFX; Auto-negotiation and auto-MDI/MDIX; Supports Ethernet to fiber port; DIN rail or wall mount; High reliability and rigid IP-30 housing Link fault pass through
  • Humidity 5 to 95%, Noncondensing
  • Overload Current Protection Yes
  • Connectors (1) RJ45; (1) SC
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wavelength (LED Source) 1310nm
Dimensions 1.03 in x 2.76 in x 3.74 in

Details

Item Media Converter
Standards IEC60068-2 Shock, Free Fall, Vibration; CE, FCC
Features Convert 10/100Base-T(X) to 100BaseFX; Auto-negotiation and auto-MDI/MDIX; Supports Ethernet to fiber port; DIN rail or wall mount; High reliability and rigid IP-30 housing Link fault pass through
Humidity 5 to 95%, Noncondensing
Overload Current Protection Yes
Connectors (1) RJ45; (1) SC
Switches DIP-Switch 1 for LFP mode selection : (ON) enable / (OFF) disable; DIP-Switch 2 for Ethernet speed selection : (ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate; DIP-Switch 3 for Ethernet full/half duplex selection : (ON) Half-duplex / (OFF) Full/Half-Duplex Auto-negotiate; DIP-Switch 4 for fiber full/half duplex selection : (ON) Half-Duplex / (OFF) Full-Duplex
Max. Distance 30 km
Link Budget 19 dB
Power Consumption 2.2 W
Storage Temperature -40 to 85°C
Reverse Polarity Protection Present on terminal block
Filtering/Forwarding Rate 10 Mbps: 14,880pps, 100Mbps: 148,800pps
Operating Temperature -40 to 70°C
Switching Processing Type Store-and-Forward
Fiber Type Single-mode
Ethernet IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3x for Flow control
Indicators Power Indicator Green: Power LED x 2; 10/100Base-T(X) RJ45 Port Indicator; Green for port Link/Act – (ON) Link up / (Blinking) Acting / (OFF) Link down; Amber for 100Mbps/10Mbps indicator – (ON) Link at 100Mbps / (OFF) Link at 10Mbps
