B&K Precision

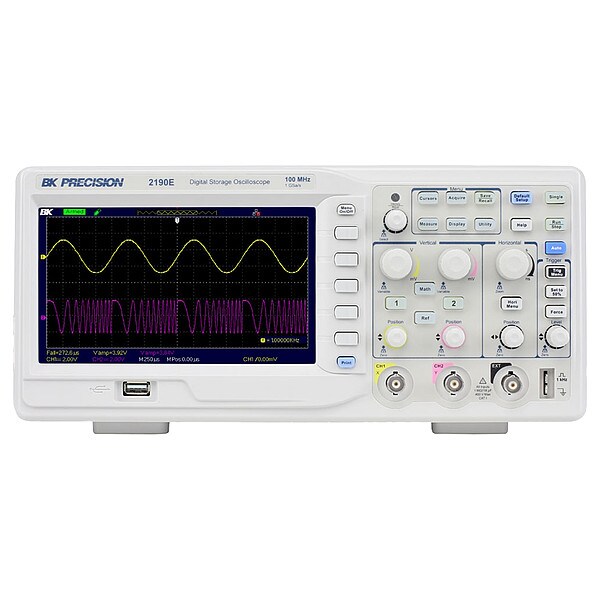

Digital Storage Oscilloscope, 2 Channels

product price: $550.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes Digital Filter with Adjustable Limits, Pass/Fail Testing, Waveform Recorder MOD
  • Calibration Certificate Yes
  • Persistence 1 sec, 2 sec, 5 sec, Infinite, Off
  • Sampling Rate 1 GSa/s
  • Waveform / Measurement Stored Front Panel USB Host Port
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Bandwidth (MHz) 100 MHz
Max. Record Length 20000 Points for Dual Channel Operation, 40000 Points when Timebase is 2.5 ns to 50 ns (20000 Points for 100 ns to 50 ms Timebase)

Details

Item Digital Storage Oscilloscope
Includes Digital Filter with Adjustable Limits, Pass/Fail Testing, Waveform Recorder MOD
Calibration Certificate Yes
Persistence 1 sec, 2 sec, 5 sec, Infinite, Off
Sampling Rate 1 GSa/s
Waveform / Measurement Stored Front Panel USB Host Port
Real Time Clock Yes
Channels 2
FFT Analysis Yes
Triggering Mode Alternating, Line-Selectable Video, Pulse Width, Slope
Display 7 in Color TFT
Features Digital Filter with Adjustable Limits, FFT Plus Four Additional Math Functions, Pass/Fail Testing, Waveform Recorder Mode
Input Sensitivity 2 mV/div to 10 V/div
Cursors and Zoom Yes
Interface LAN, USB

Description

Digital Storage Oscilloscope, Bandwidth (MHz) 100 MHz, 2 Channels, 7 in Color TFT Display, Sampling Rate 1 GSa/s, Front Panel USB Host Port Waveform / Measurement Stored, Max. Record Length 20000 Points for Dual Channel Operation, 40000 Points when Timebase is 2.5 ns to 50 ns (20000 Points for 100 ns to 50 ms Timebase), FFT Analysis Yes, Cursors and Zoom Yes, Real Time Clock Yes, Alternating, Line-Selectable Video, Pulse Width, Slope Triggering Mode, Input Sensitivity 2 mV/div to 10 V/div
