Bison Gear & Engineering

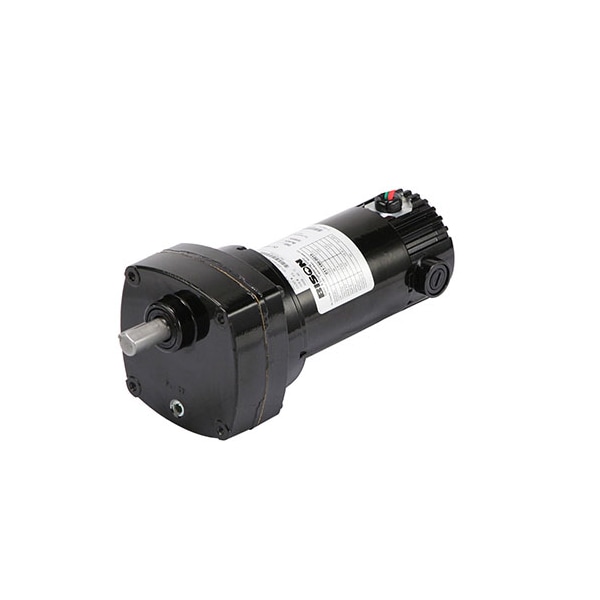

DC Gearmotor, 37RPM, 24V

product price: $578.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Rotation CW/CCW
  • Lubrication Oil
  • Gear Ratio 49:1
  • Motor Type Permanent Magnet DC
  • Overall Length 8.41 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Overall Length 8.41 in
Length Less Shaft 6.99 in
Overall Width 3.75 in
Mount Hole Center-to-Center Width 1.88 in
Mount Hole Center-to-Center Length 3.75 in
Output Connection Depth 1 7/16 in
Keyway Width 1/8 in
Keyway Depth 1/8 in
Keyway Length 3/4 in
Output Shaft Diameter 1/2 in
Housing Mount Hole Size 0.28 in

Description

DC Gearmotor,37RPM,24V, Shaft Orientation Parallel, Output Shaft Type Keyed, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 24V DC, Motor Type Permanent Magnet DC, Maximum Torque 74 in-lb, Overhung Load Capacity 130 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 49:1, Input Horsepower 1/20 hp, Motor Insulation Class F, Output Connection Depth 1 7/16 in, Output Shaft Diameter 1/2 in, Bearing Type Ball, Needle, Color Black
