Shop All AC Gear Motors
Bison Gear & Engineering

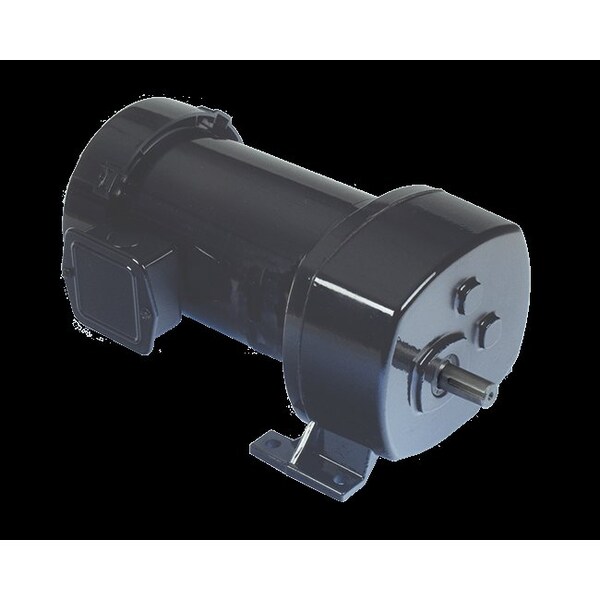

AC Gearmotor, 32.8RPM, 230/460V
Mfr # 017-482-0053
Zoro # G9652916
Free Shipping & Returns
$906.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Length Less Shaft 12.76 in
- Standards RoHS Compliant
- Gear Type Spur
- Gear Ratio 53.9:1
- Motor Type Split-Phase
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Bison Gear & Engineering
- MFR # 017-482-0053
- Zoro # G9652916
- UPC # 00663001081654
- Country of Origin United States
- Category AC Gear Motors
Dimensions
Length Less Shaft | 12.76 in |
Overall Length | 14.26 in |
Overall Width | 8.13 in |
Overall Height | 6.63 in |
Housing Mount Hole Size | 7/16 in |
Mount Hole Center-to-Center Length | 7.13 in |
Output Shaft Diameter | 3/4 in |
Keyway Depth | 3/16 in |
Keyway Width | 3/16 in |
Mount Hole Center-to-Center Width | 2.5 in |
Keyway Length | 1 1/8 in |
Output Shaft Length | 1 1/2 in |
Description
AC Gearmotor, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Maximum Torque 846 in-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 53.9:1, Shaft Orientation Parallel, Motor Duty Class Continuous, AGMA Gear Class Class 9
