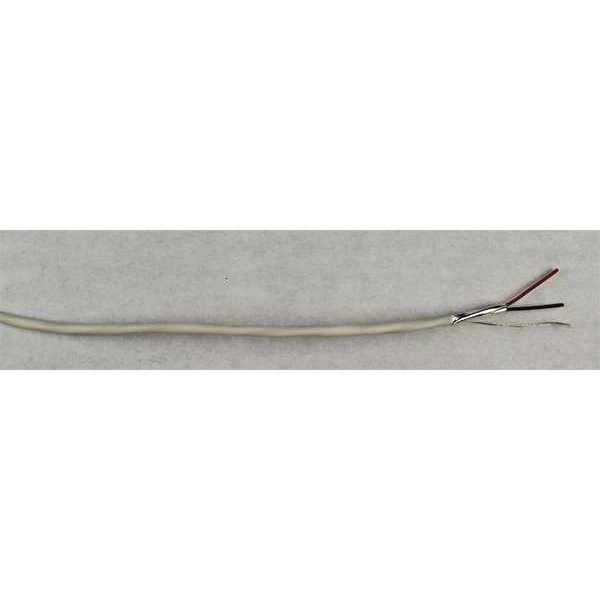

Multi-Conductor, 24 AWG, Natural, 0.106 in.

Mfr # 82641 8771000
Zoro # G3724309

$3,310.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Fire Rating - Data Cable Plenum
Number of Conductors 2
Shielded Shielded
Total Number of Conductors - Data Cable 2 (1 Pair)
Conductor Size - Data Cable 24 AWG

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Belden
MFR # 82641 8771000
Zoro # G3724309
UPC #
612825197508
Country of Origin United States
Category Communication Cables

Dimensions

Conductor Size - Data Cable	24 AWG
Length	1000 ft.
Nominal Outside Dia.	0.106 in
Spool Length	1,000 ft
Conductor Size	24 AWG
Bend Radius	1 1/8 in
Cable Length	1,000 ft
Outside Diameter	0.1 in

Details

Item - Data Cable	Communication Cable
Item	Communication Cable
Fire Rating - Data Cable	Plenum
Number of Conductors	2
Shielded	Shielded
Total Number of Conductors - Data Cable	2 (1 Pair)
Solid / Stranded	Stranded
Jacket Color	Natural
Application - Communication Cable	Audio Systems, Control Systems, Instrumentation Systems
Jacket Material	PVC
Suggested Voltage Rating - Data Cable	300 V
Temp. Range	32 Degrees to 140 Degrees F
Jacket Material - Wire and Cable	PVC
Plenum / Riser Rated	Plenum Rated
NEC Article and Type	800 CMP
Package Type - Data Cable	Reel in a Box
Application	Alarm Systems, Audio Systems, Instrumentation Systems
Shielding Material	Foil
Insulation Material	FEP
Shielded / Unshielded	Shielded
Standards	APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CMP, CPR Euroclass: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CMP, NFPA 262 UL 910 (Plenum), UKCA Mark
Cable Sub-Category	Multi-Conductor
Package Type	Reel in a Box
Conductor Gauge	24 AWG
Maximum Voltage Rating	300 V
Product Type	Communication Cable
Maximum Current	2.2 A
Maximum Impedance	24.1 ohm
Maximum Capacitance	31.0 pf/ft (Nominal Capacitance Conductor to Conductor); 59.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Minimum Operating Temperature	32 Degrees F
Solid/Stranded	Stranded
Number of Pairs	1
Number of Strands	32
Resistance Properties	Flame/Fire Resistant
Fire Rating	Commercial
Maximum Operating Temperature	140 Degrees F
NEC Rating	UL LISTED ART 800 PLENUM
Material	Tinned Copper
Shield Type	Foil Shielded - Alum/Mylar
Temperature Rating	60 Degrees Centigrade
Jacket Thickness (In.)	0.014 in
Conductor Count	1 Pair
Nom. Capacitance (Pf/Ft.)	31
CSA	FT6 HORIZONTAL FLAME & SMOKE TEST
Construction	Overall Shield & Drain
Conductor Type	Stranded Conductor
Screen/Shield	Yes
Spec Nbr Ul Style	UL LSTED WIRE MISC.
Voltage Rating	300 Volts AC
Jacketing Material	Lspvc-Low Smoke Polyvinyl Chloride
Insulation Thickness (In.)	0.006 in
Jacket	Flamarrest--Natural

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 32, Conductor Gauge 24 AWG, Insulation Material FEP, Jacket Color Natural, Jacket Material PVC, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.1 in, Package Type Reel in a Box, Application Alarm Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CMP, Number of Pairs 1
