  11. Stepping Motor Driver, 2-Ph, 24-35VDC, 2.0A
Shop All Motor Accessories
Autonics

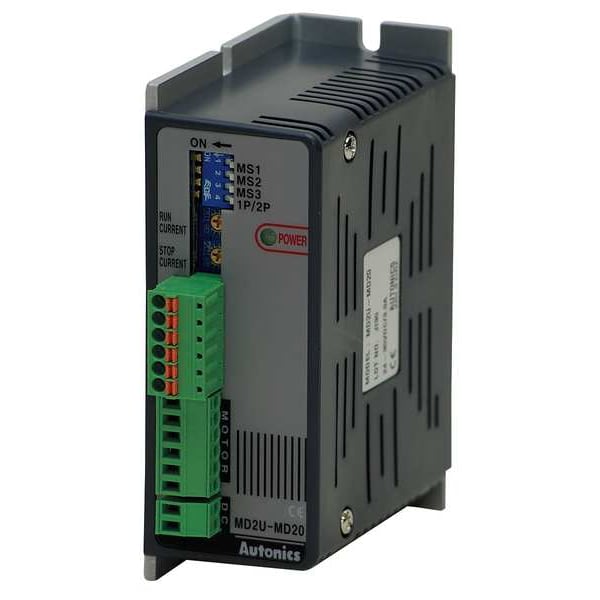

Stepping Motor Driver, 2-Ph, 24-35VDC, 2.0A

product price: $220.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Run Method Unipolar
  • Min. Input Pulse Width 10 microsec
  • Phase Two
  • Mounting 2-Hole
  • Voltage 100-220 V AC
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Min. Input Pulse Width 10 microsec
Width 1 9/16 in
Depth 3 1/16 in
Height 4 1/8 in
Minimum Input Pulse Width 10 msec
Overall Height 4 1/8 in
Overall Width 1 9/16 in
Overall Depth 3 1/16 in

Details

Item Stepping Motor Driver
Run Method Unipolar
Phase Two
Mounting 2-Hole
Voltage 100-220 V AC
Resolution / Microstep Divisions 1, 2, 4, 5, 8, 10, 16, 20
For Use With 5PFF1, 5PFF2, 5PFF3
Mounting Pattern 3.799 in on Center
Amps Per Phase 2.0
Max. Input Pulse Frequency 50 kpps
Standards CE, RoHS
Amps per Phase 2 A
Number of Microstep Divisions 1, 2, 4, 5, 8, 10, 16, 20
Mounting Hole Centerline 3.799 in
Maximum Input Pulse Frequency 50 kpps
Number of Mounting Holes 2

Description

Stepping Motor Driver, Phase Two, Amps per Phase 2 A, 100-220 V AC, Unipolar, Mounting 2-Hole, Number of Microstep Divisions 1, 2, 4, 5, 8, 10, 16, 20, Maximum Input Pulse Frequency 50 kpps, Minimum Input Pulse Width 10 msec, Mounting Pattern 3.799 in on Center, Number of Mounting Holes 2, Mounting Hole Centerline 3.799 in, Overall Height 4 1/8 in, Overall Width 1 9/16 in, Overall Depth 3 1/16 in, Standards CE, RoHS
