DIN Rail DB44 High Density Male Breakout Board, Male 44 Pin D-Sub To Terminal Block Interface Module

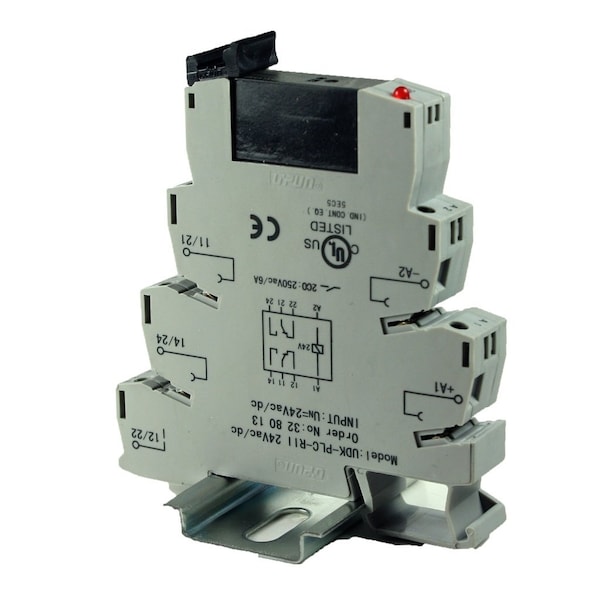

ASI328013 is a 24V ac or dc terminal block relay with a pluggable DPDT relay that has a 24Vac/dc coil and a contact rating of 8A, 250Vac. This DPDT 24V DIN rail relay is ideal as an isolation relay or interposing relay and saves space in your equipment due to the 14mm width. Features of this DPDT 24V terminal block relay include screw clamp wire terminations, a locking actuator to hold in place and remove the 24Vac/dc relay and a LED for visual indication. The terminal block relay base in combination with the 24Vac/dc pluggable relay are UL508 Listed. Since this industrial relay mounts on the standard 35mm DIN rail installation with other DIN rail mounted components is quick and easy. To ensure wiring is correct each 24Vac/dc terminal block relay base has the wiring diagram printed on the side.
